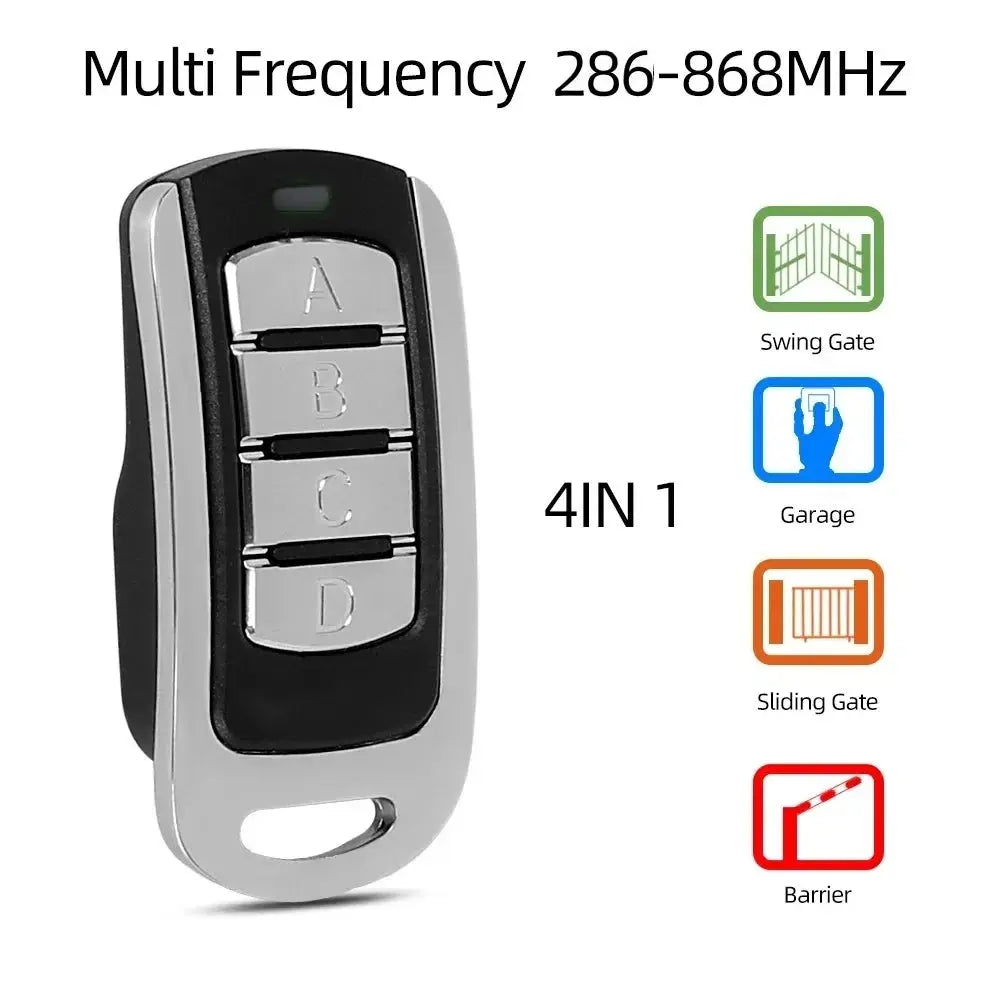

Kebidu Universal Garage Door Remote Duplicator
A versatile 4-channel remote duplicator designed to duplicate garage remote signals, available in two variants: a wide-range multi-frequency 286–868MHz version, or a 433MHz fixed code only version. Compatible with most fixed code garage door remotes, garage gate remote systems, barriers, alarm systems, and home automation devices. Battery included.
Important: This remote cloner works with fixed code remotes only. Rolling code remotes are not compatible. Please verify your remote’s IC chip and frequency before purchasing.
Two Variants Available
-

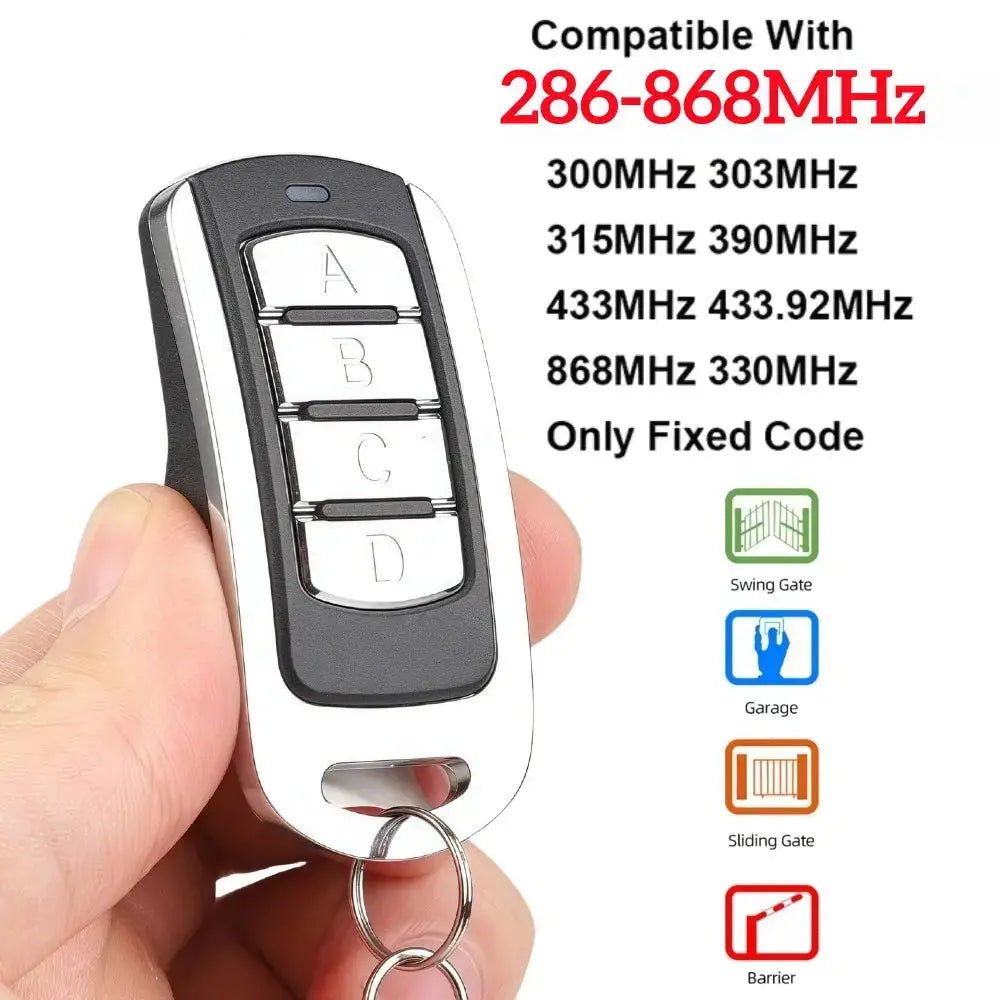

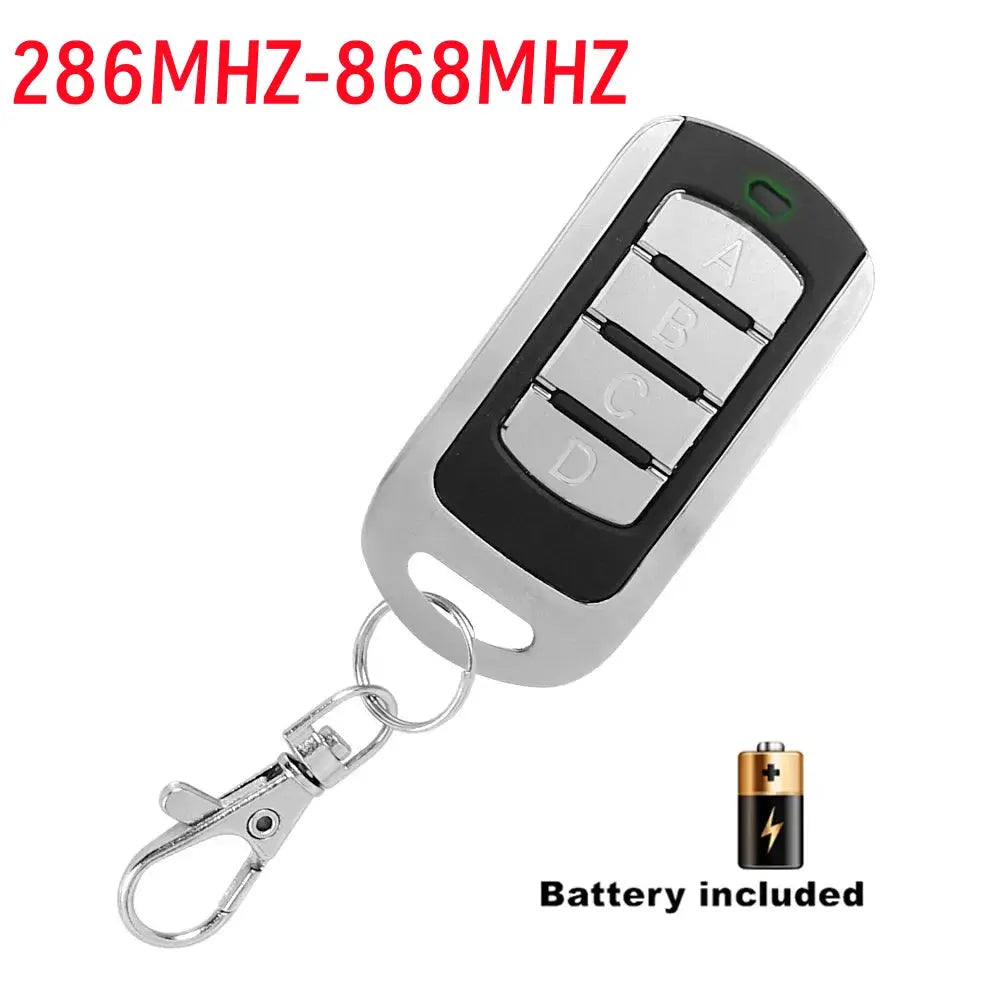

Multi-Frequency 286–868MHz – Copies remotes at 300, 310, 315, 390, 433, 433.92, 434.42, and 868MHz.
-

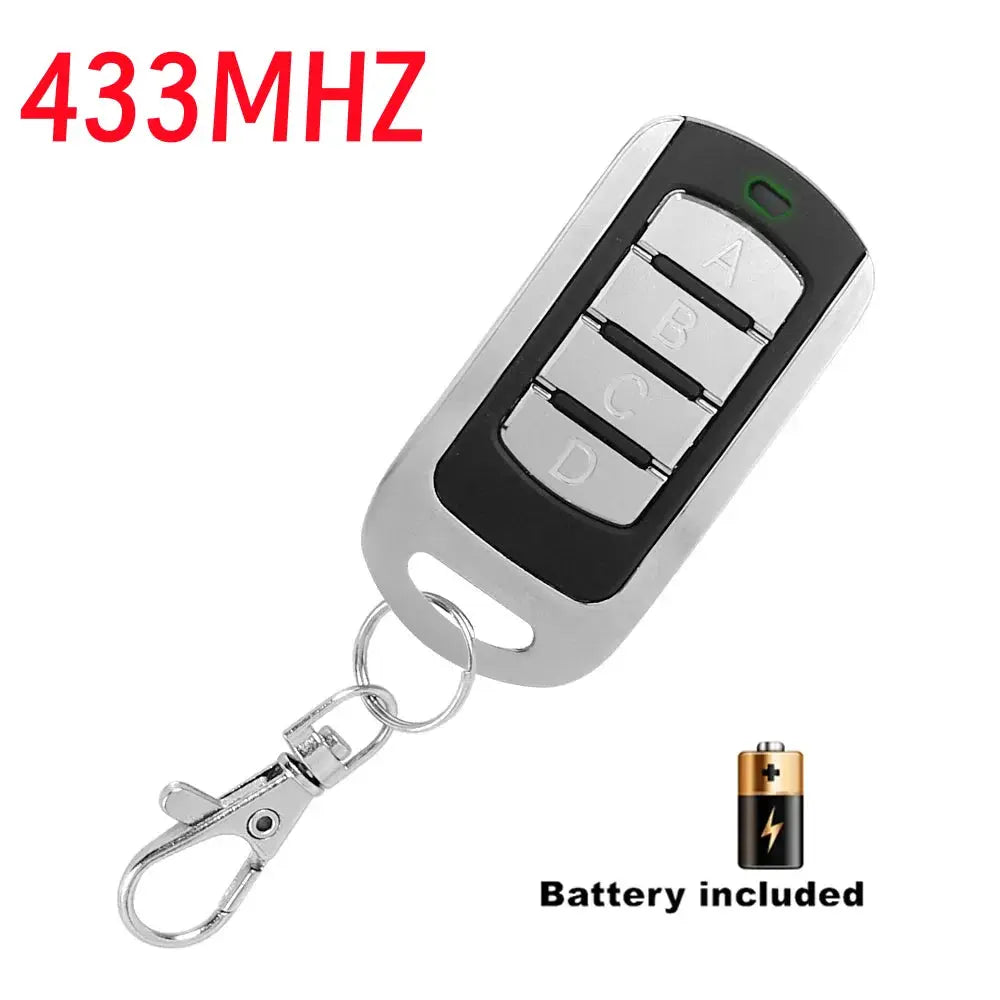

433MHz Fixed Code – For 433MHz fixed code remotes only.
Key Features
-
4-Channel Copying – Copy up to 4 different remote signals, one per button.
-

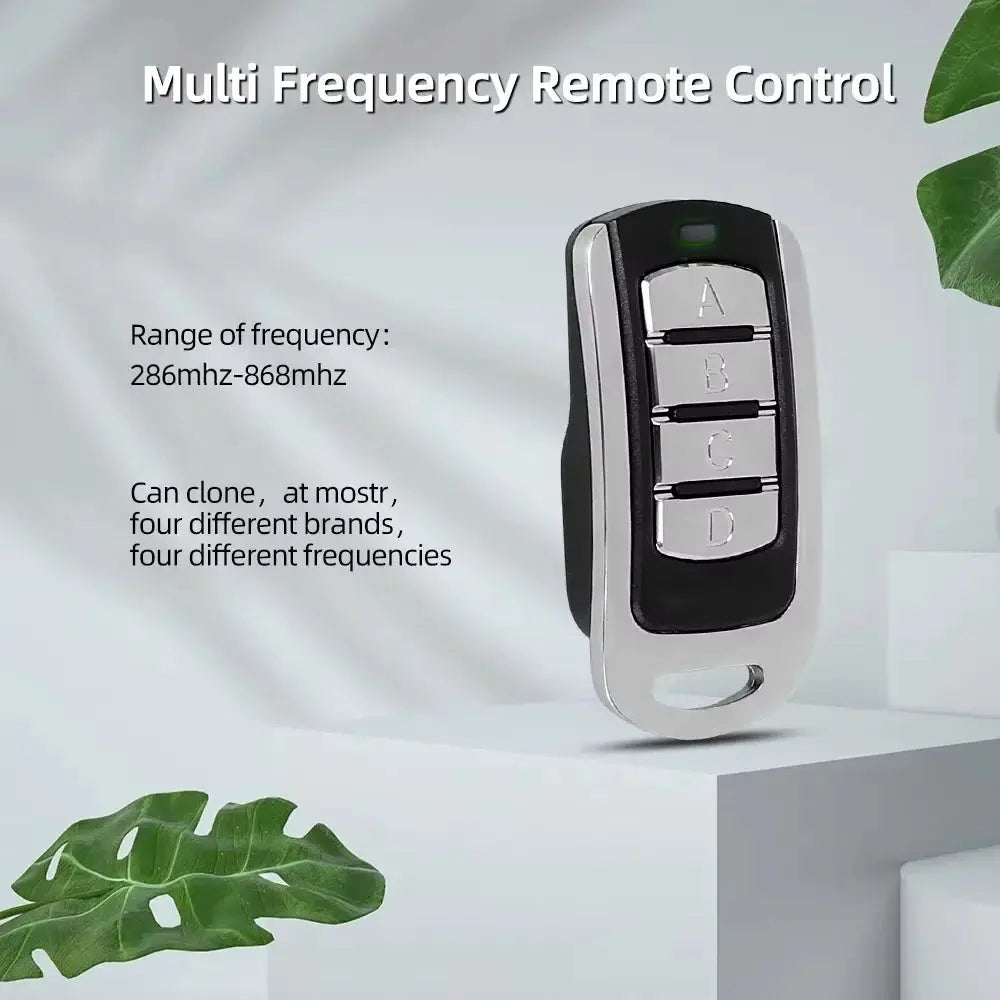

Wide Frequency Support – Multi-frequency version covers 286–868MHz for a range of garage door opener and gate remote applications.
-
Recovery Code Function – Restore accidentally cleared codes without re-copying.
-
CE & FCC Certified – Meets international safety and quality standards.
-

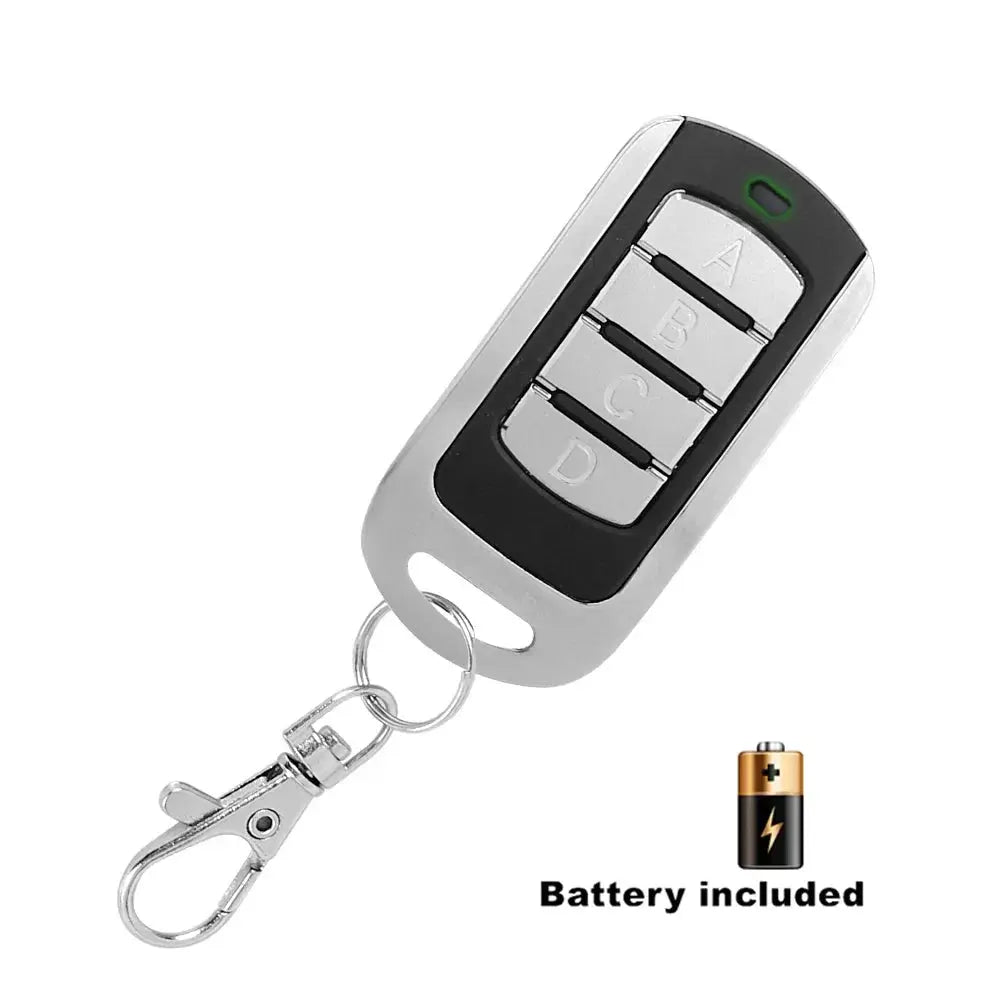

Battery Included – Ready to use out of the box.
-

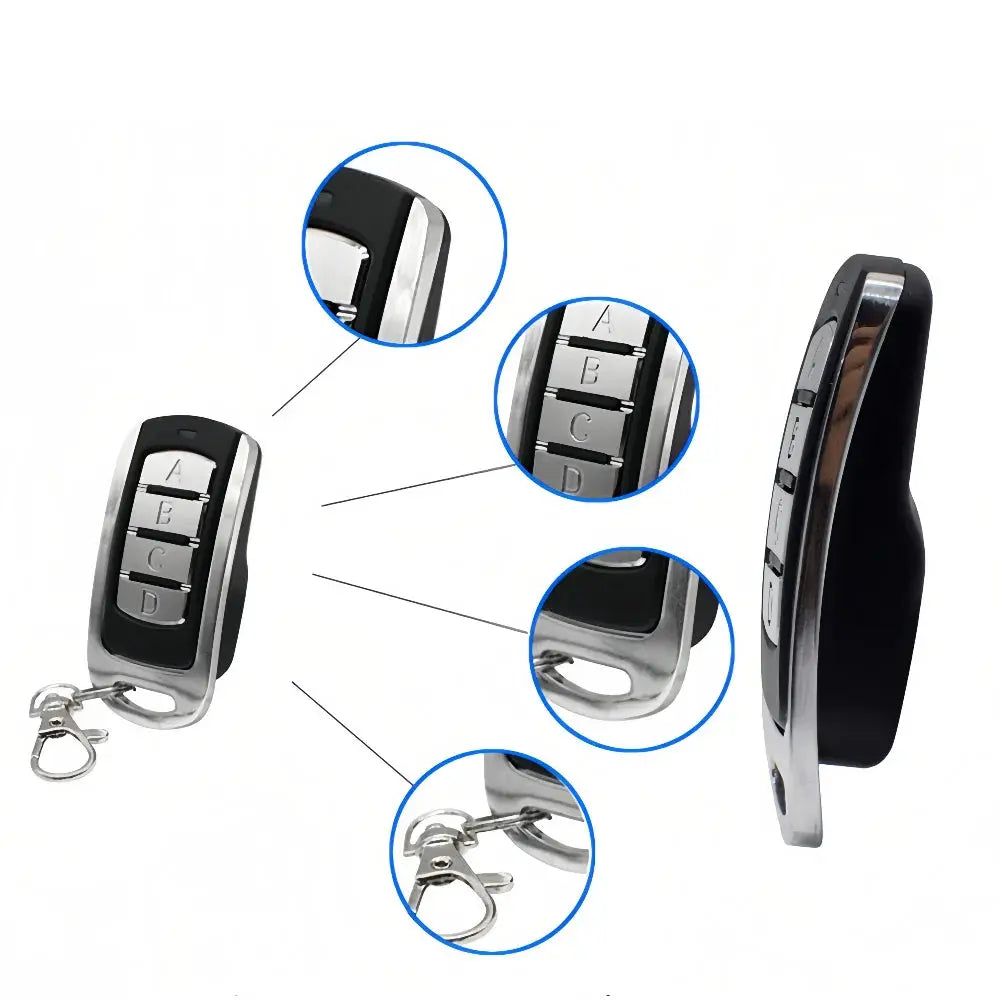

Compact Design – 50 × 40 × 10mm, 35g — lightweight and easy to carry.
Compatible Uses
- Garage doors and roller doors
- Electric gates and barriers
- Automatic and rolling doors
- Alarm systems and home automation
- Lighting and switch control
Compatible IC Chips
2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6041, SMC918 series, 527, 1527, 2240, HCS101, HCS200/HCS201 (partial), HCS300/SCH3001 (partial), and compatible single-chip microcomputers.
How to Use
Step 1 – Clear Existing Code
Press B and A simultaneously until the LED flashes three times. Release one button while holding the other, then press the released button three more times. The LED will flash rapidly — all memory is cleared. After clearing, pressing any button will not light the LED.
Step 2 – Copy
Place both remotes as close together as possible (ideally side by side on a flat surface). Press the corresponding button on both remotes simultaneously. When the LED flashes quickly after three flashes, copying is successful. Repeat for each button as needed. If copying fails, clear the code and try again away from interference sources.
Recover Accidentally Cleared Codes
Press and hold A and B simultaneously until the LED flashes rapidly — previously cleared codes are restored. Note: this only works if no new copying has been performed since the accidental clear.
Specifications
-
Frequency: 286–868MHz (multi-frequency) or 433MHz (fixed code variant)
-
Channels: 4
-
Voltage: 3V DC
-
Dimensions: 50 × 40 × 10mm
-
Weight: 35g
-
Material: ABS Plastic
-
Certification: CE, FCC
-
Hazardous Chemicals: None
What’s in the Box
- 1 × Universal Remote Duplicator
- Battery included
Frequently Asked Questions
Will this work with my rolling code remote?
No. This duplicator only works with fixed code remotes. Rolling code remotes are not compatible.
What’s the difference between the two variants?
The multi-frequency version (286–868MHz) works with remotes across a wide range of frequencies. The 433MHz version only works with 433MHz fixed code remotes. Select the correct variant for your existing remote’s frequency.
