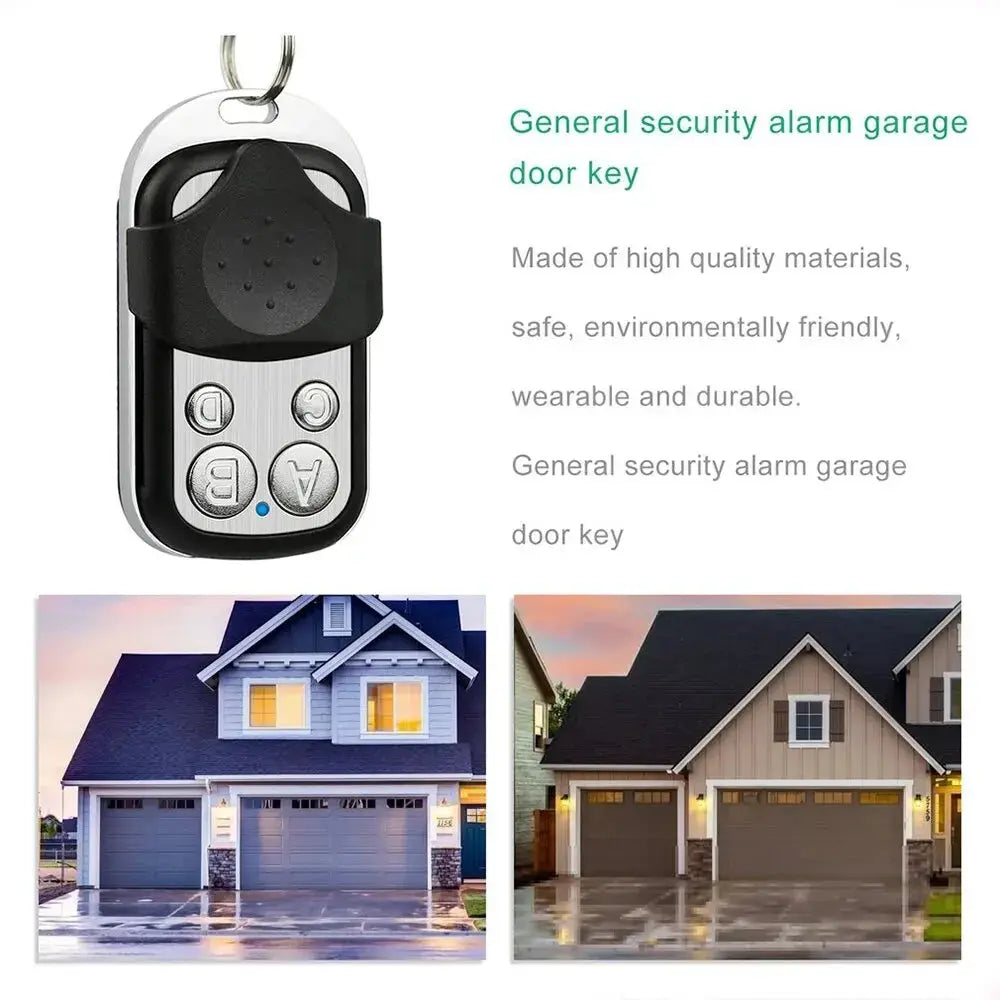

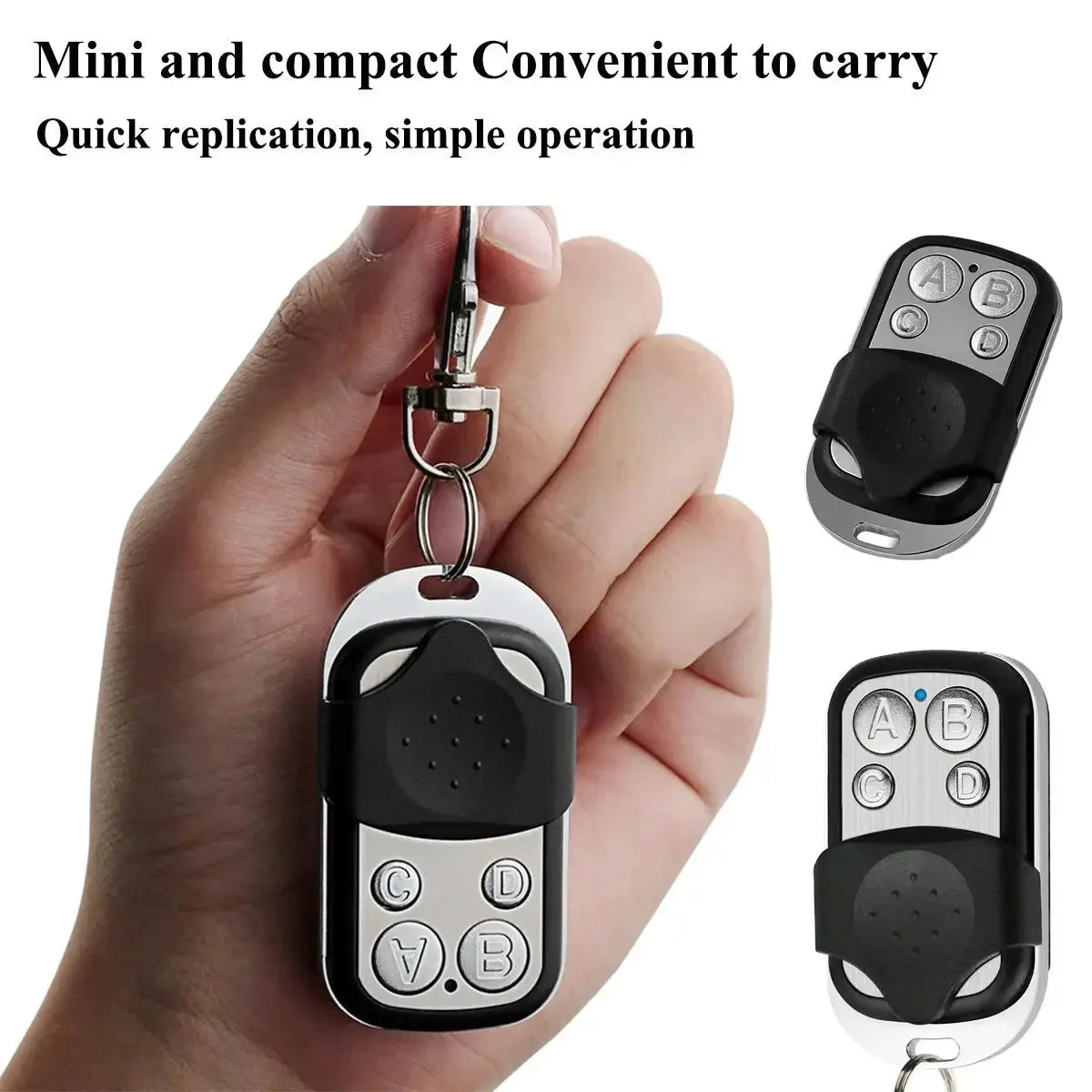

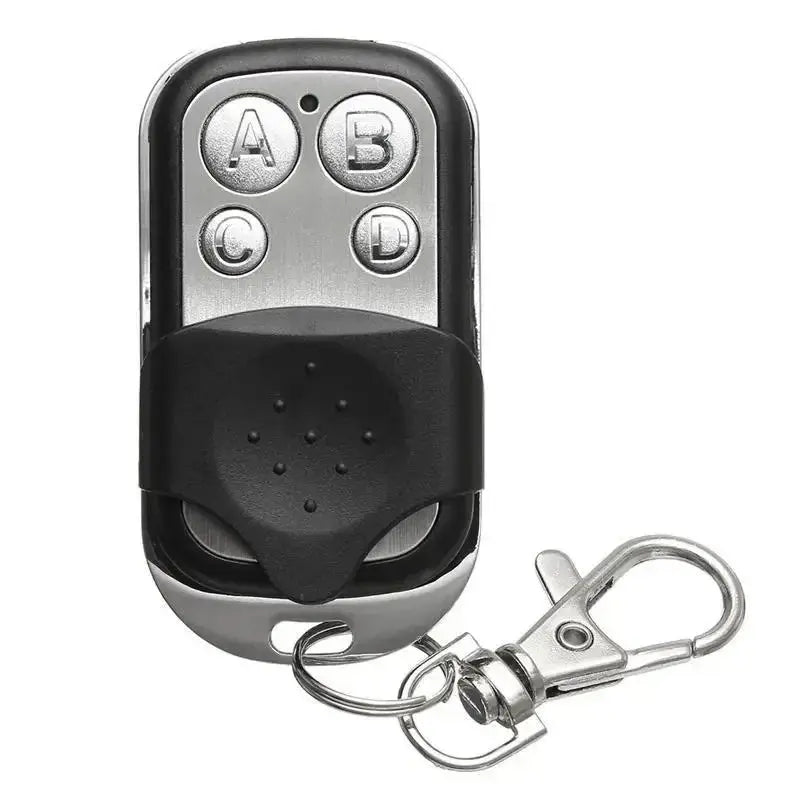

433MHz 4-Button Metal Remote Duplicator

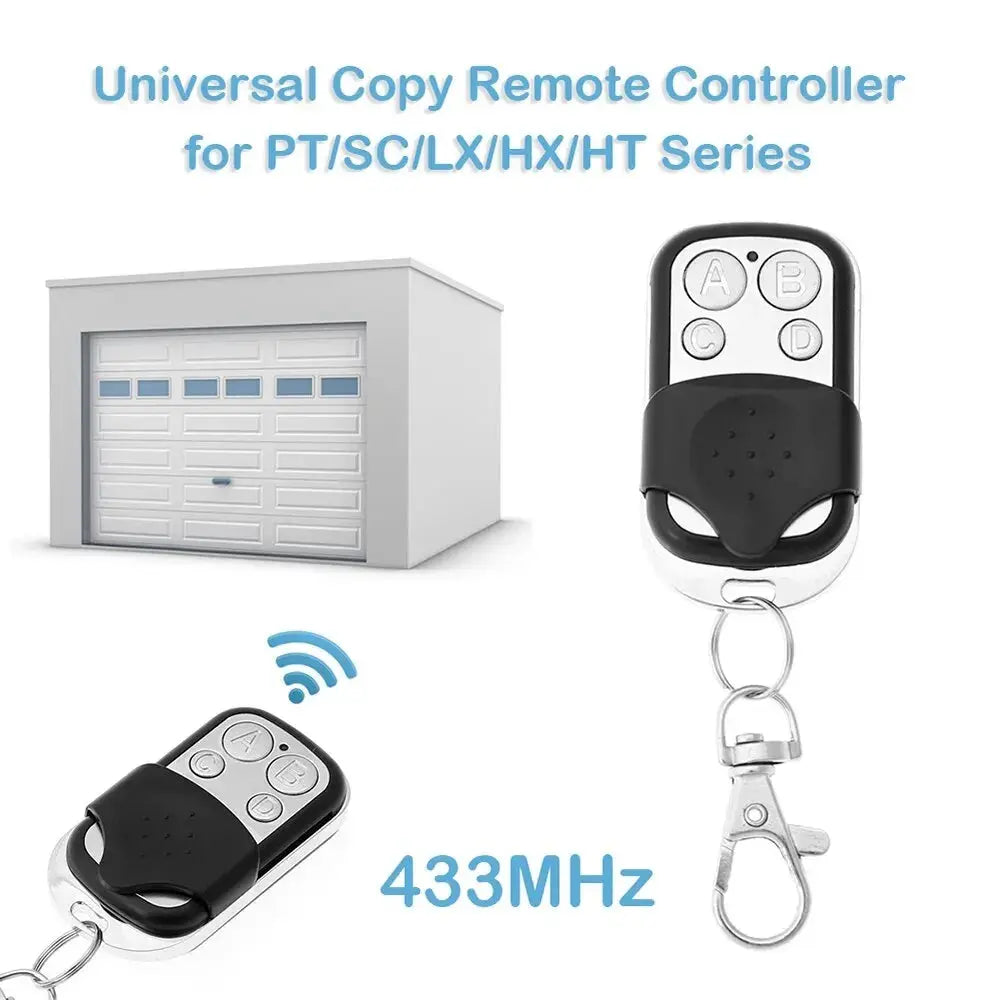

A compact, durable 433MHz remote clone with metal push buttons. Clone up to 4 fixed or learning code remote signals from 4 different remotes — one per button. Compatible with all 433MHz fixed code key fobs using common IC chips. Ideal for garage doors, gates, vehicle central locking, alarm systems, and home automation.
Important: This duplicator works with fixed and learning code remotes only. Rolling code remotes are not compatible. Please verify your remote’s IC chip model before purchasing.
Key Features
-

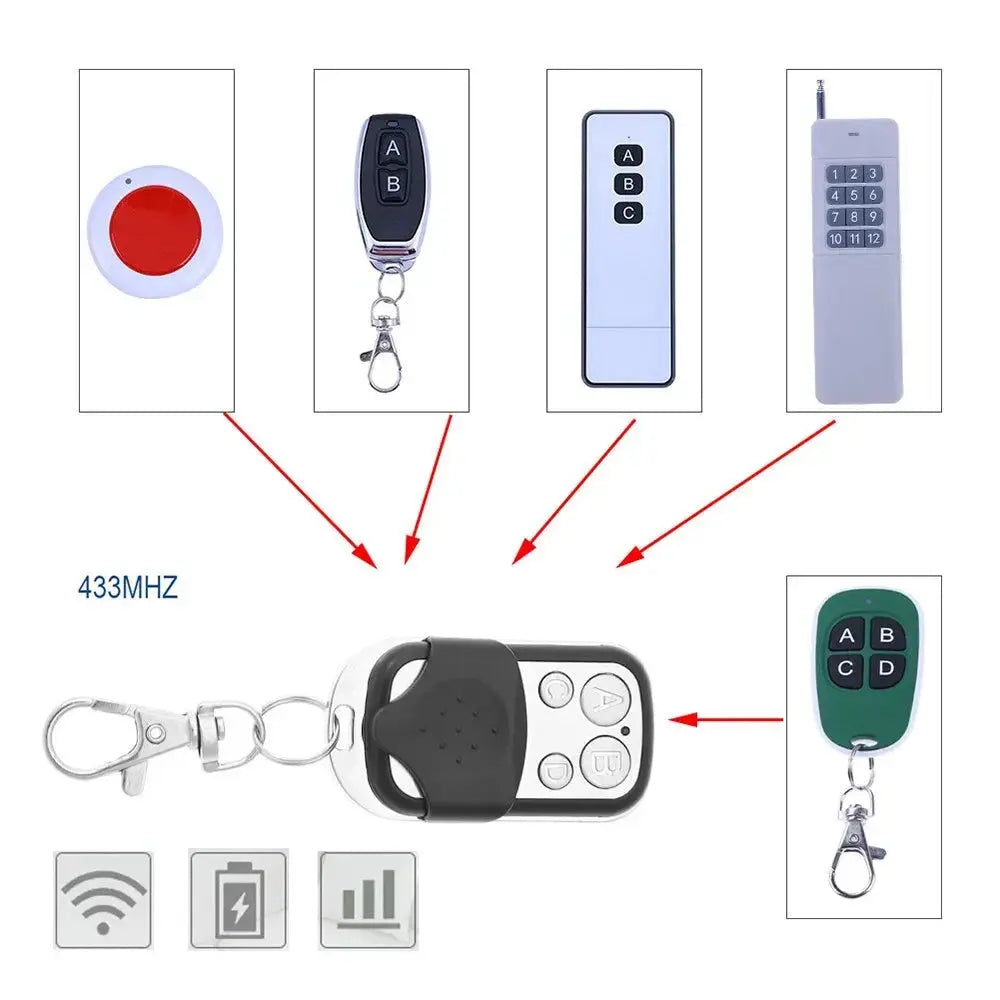

4-Channel Cloning – Clone up to 4 different 433MHz fixed code remotes, one per button (A, B, C, D).
-

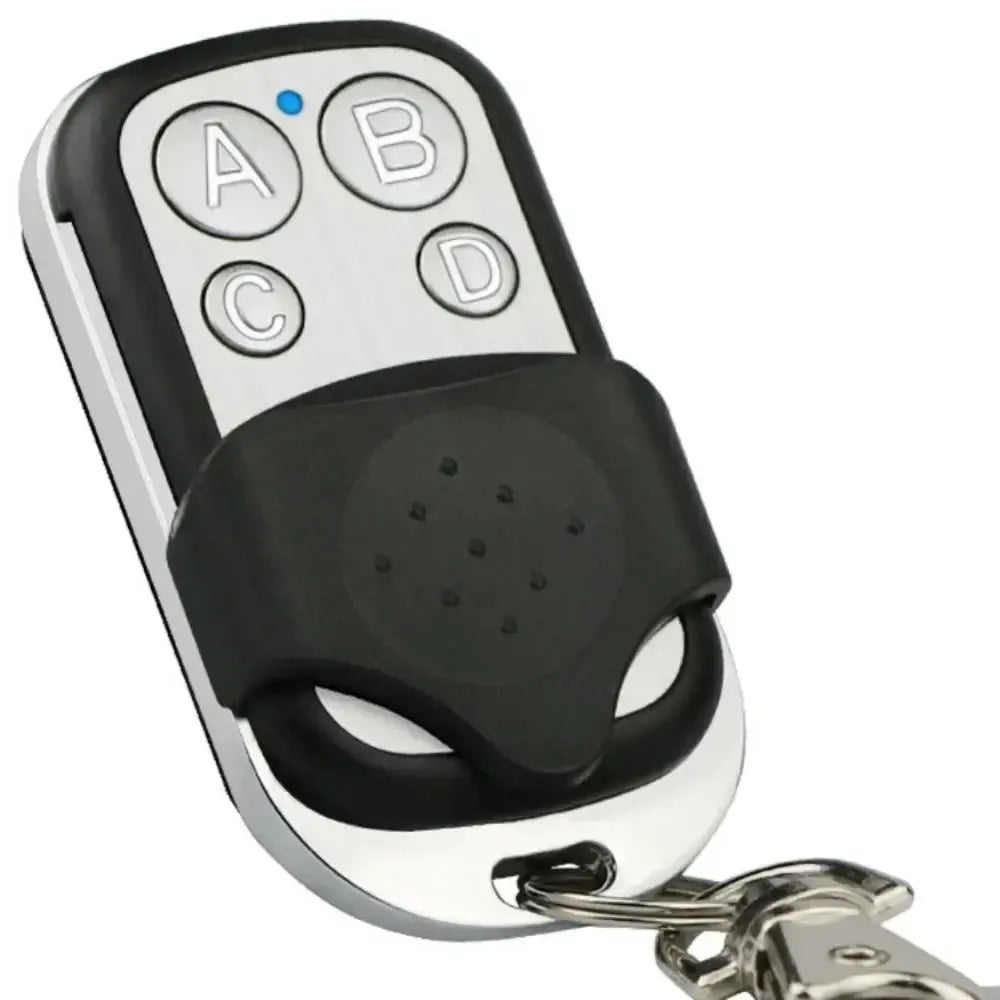

Metal Push Buttons – Durable metal construction for reliable, long-lasting use.
-
433MHz Fixed Frequency – Works with all 433MHz fixed and learning code remotes.
-
Up to 100 Metre Range – Strong signal for reliable operation.
-
27A 12V Battery Included – Ready to use out of the box.
-
CE & RoHS Certified – Meets European safety and environmental standards.
Compatible Uses
- Garage door access control systems
- Electronic gate openers
- Vehicle central locking systems
- Car sunroof controls
- Alarm systems
- Heating systems
- Light switches and electrical appliances

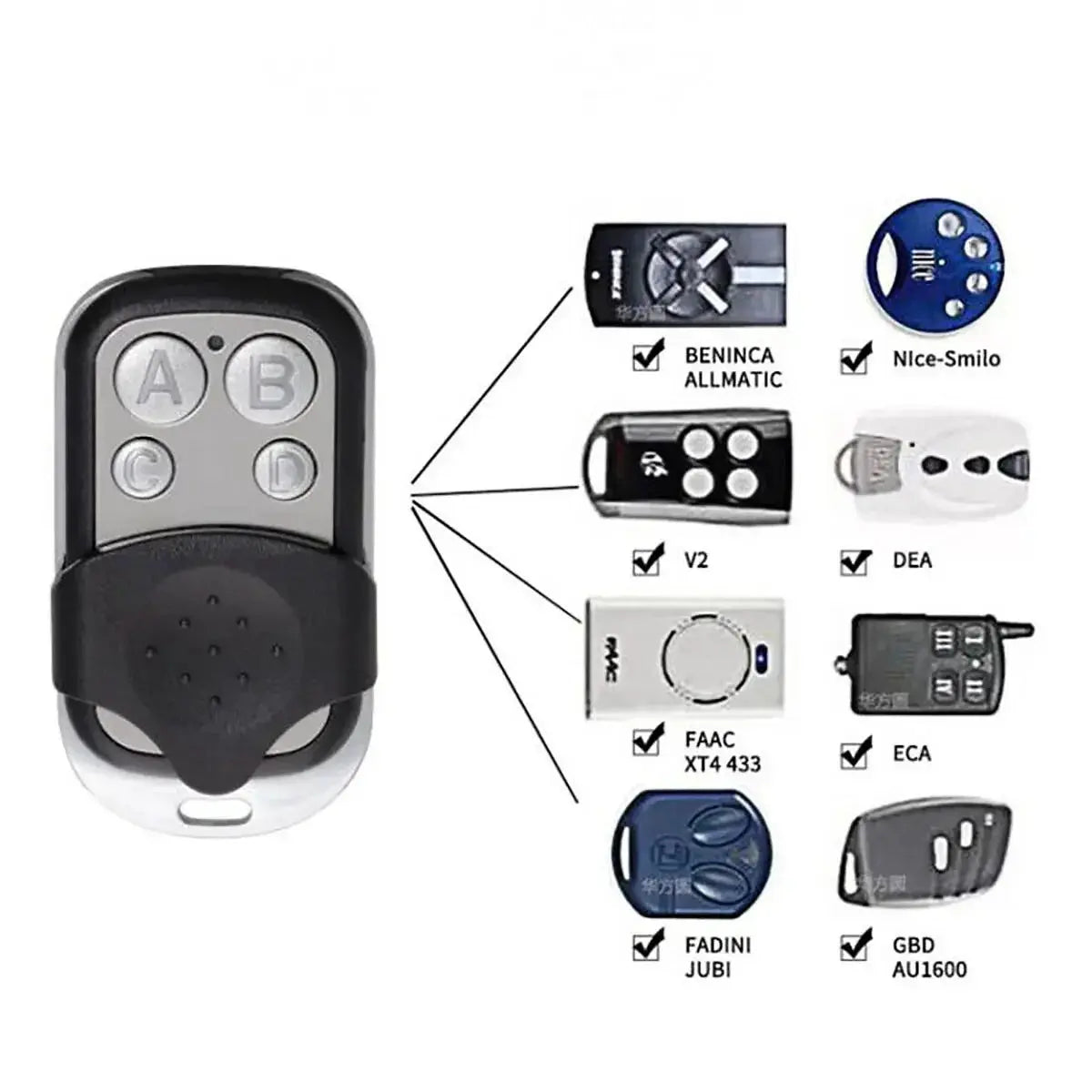

Compatible IC Chips
This duplicator can clone remotes containing the following IC chips:
PT2264, PT2262, PT2260, PT2240, SC2262, SC2260, EV1527, SCT527, HS1527, HS2240, SCL1527, FP1527
If your remote uses a different chip, it will not be compatible. Check the chip model on your original remote before purchasing.

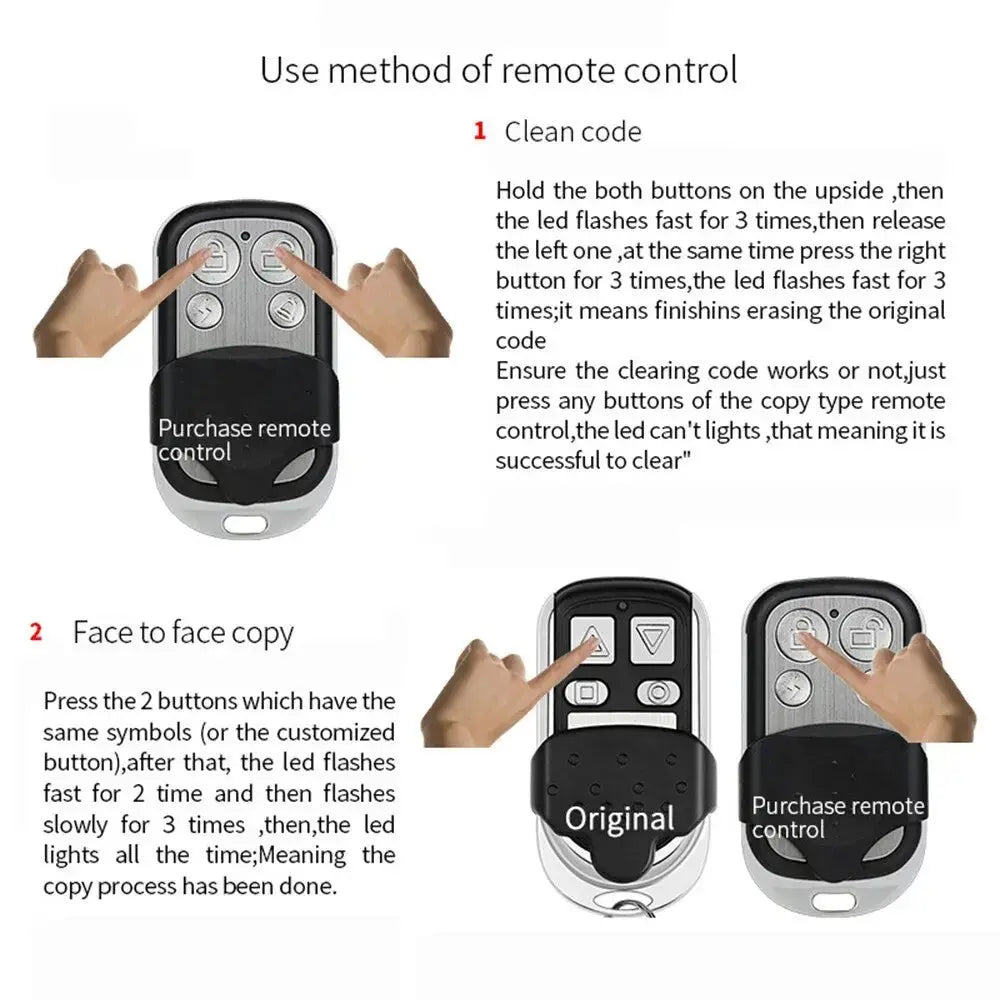

How to Clone Your Remote
Step 1 – Reset
Press any two buttons on the duplicator simultaneously until the LED flashes — this confirms the reset is successful. After resetting, pressing any button will not light the LED.
Step 2 – Copy

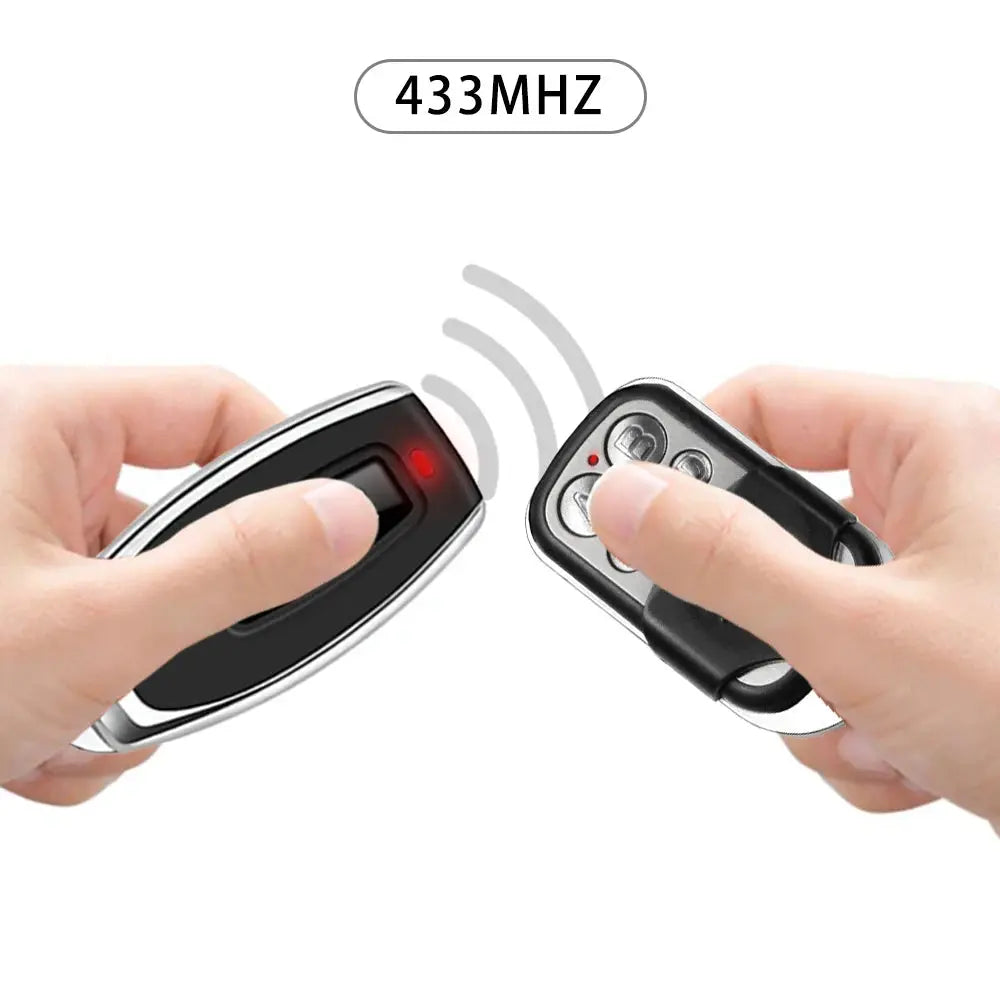

Place both remotes on a flat surface facing each other. Press and hold the button on the duplicator you want to copy to until the LED turns on then off — this enters copy mode. Then press the corresponding button on your original remote. The LED flashing rapidly confirms successful copying. Repeat for each button as needed.
Specifications
-
Frequency: 433MHz
-
Code Type: Fixed code / Learning code (no rolling code)
-
Channels: 4 (A, B, C, D)
-
Battery: 27A 12V (included)
-
Range: Up to 100 metres
-

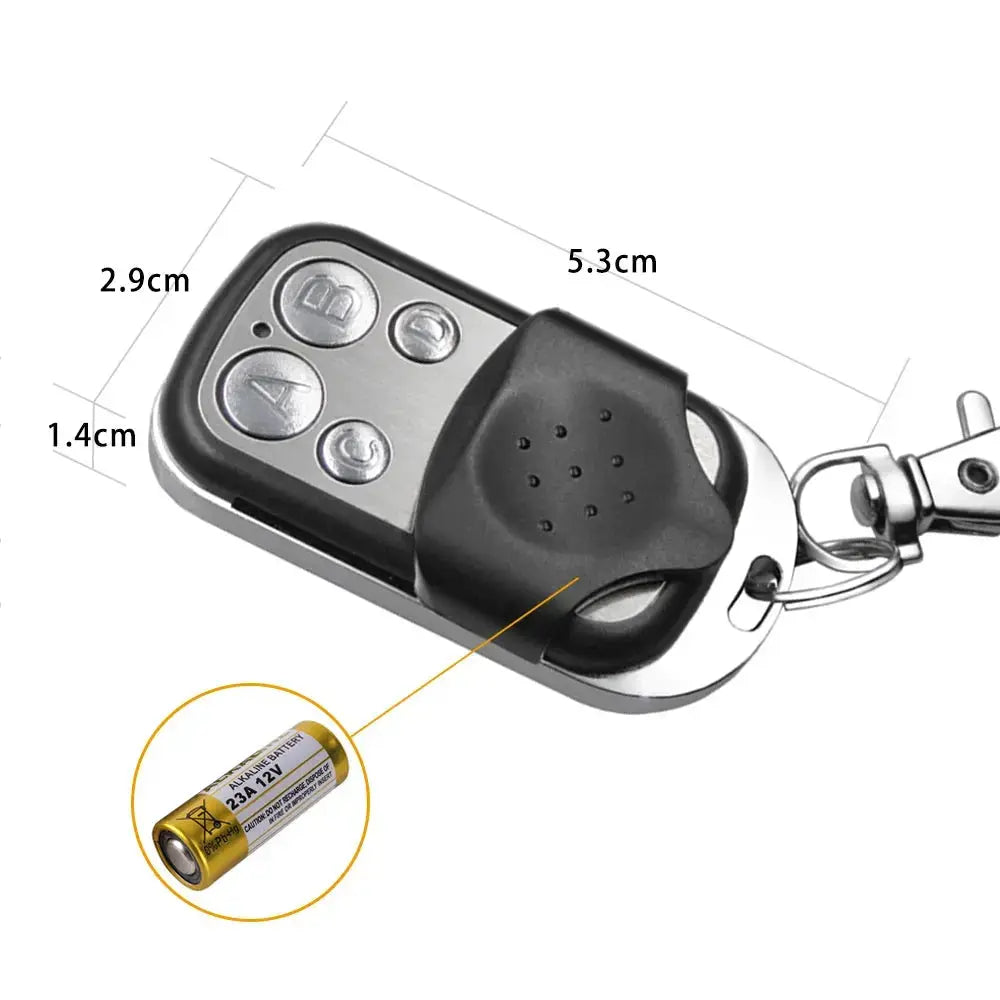

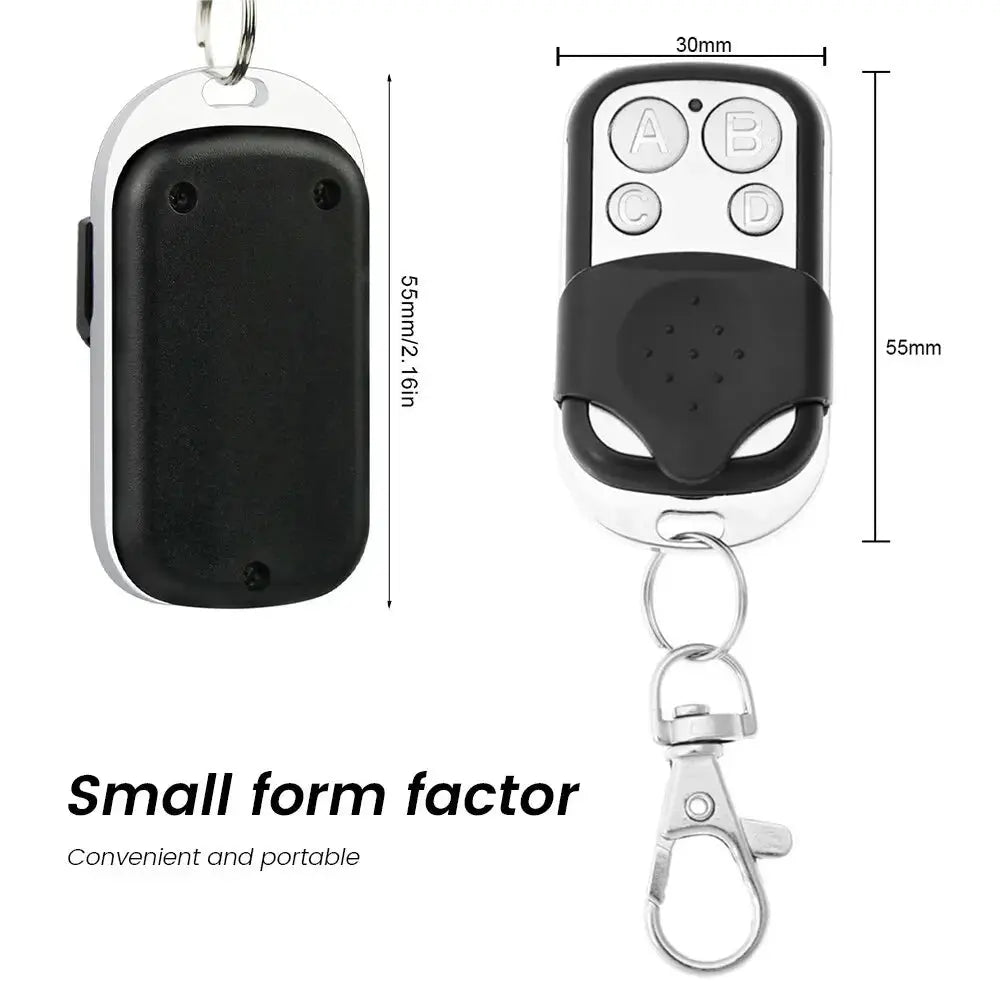

Dimensions: 55 × 28 × 14mm
-
Weight: 33g
-

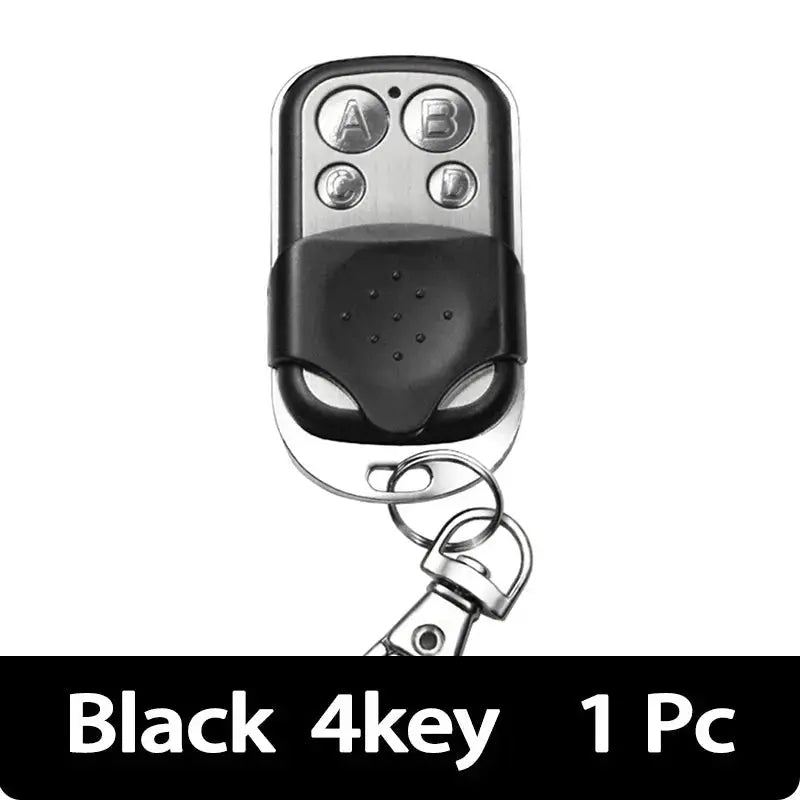

Colour: Black
-
Certification: CE, RoHS
What’s in the Box
- 1 × 433MHz 4-Button Metal Remote Duplicator
- 27A 12V battery included
Frequently Asked Questions
Will this work with my rolling code remote?
No. This duplicator only works with fixed code and learning code remotes. Rolling code remotes are not compatible.
How do I know if my remote is compatible?
Open your original remote and check the IC chip model. If it matches one of the chips listed above (e.g. EV1527, PT2262), this duplicator will work. If you’re unsure, contact us before purchasing.
What should I do if copying fails?
Check that your original remote uses one of the compatible IC chips listed. If the chip doesn’t match, the remote cannot be copied with this duplicator.
