433.92MHz Rolling Code Garage Door & Gate Remote with 2-Channel Receiver
A versatile 433.92MHz remote control and receiver kit for garage doors, gates, and automation systems. The 2-channel receiver supports fixed, learning, and rolling code remotes and is compatible with most 433.92MHz remotes on the market. Each relay can store up to 200 remote controls (400 total). Battery included with the remote.

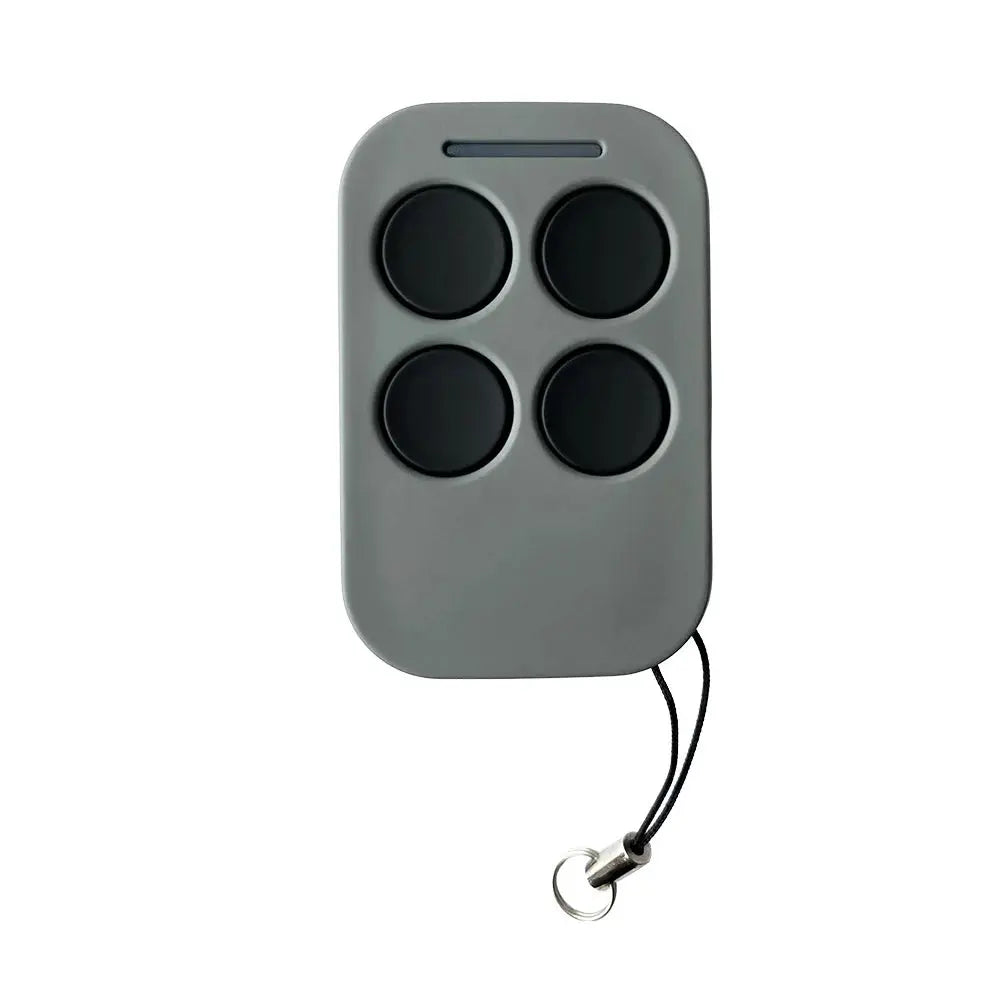

Important: If purchasing the remote separately, ensure your existing remote is the same grey model as pictured. A different remote model will not be compatible.

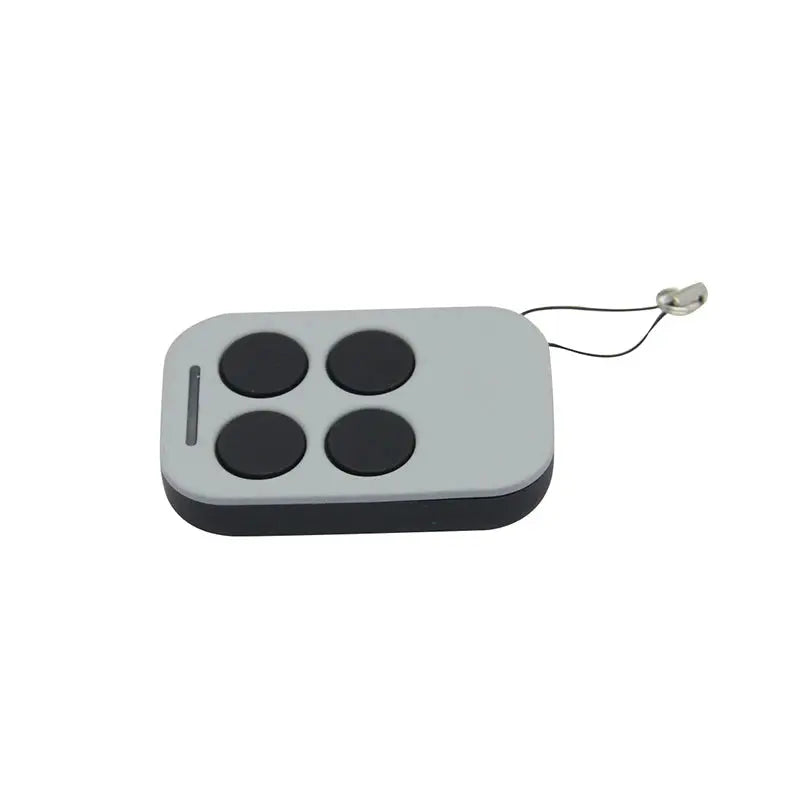

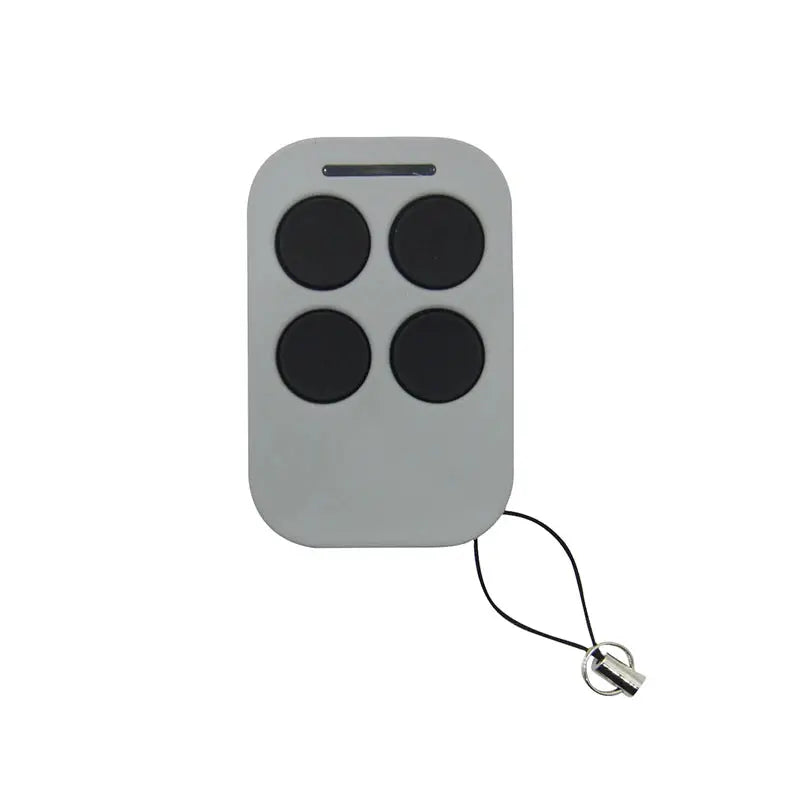

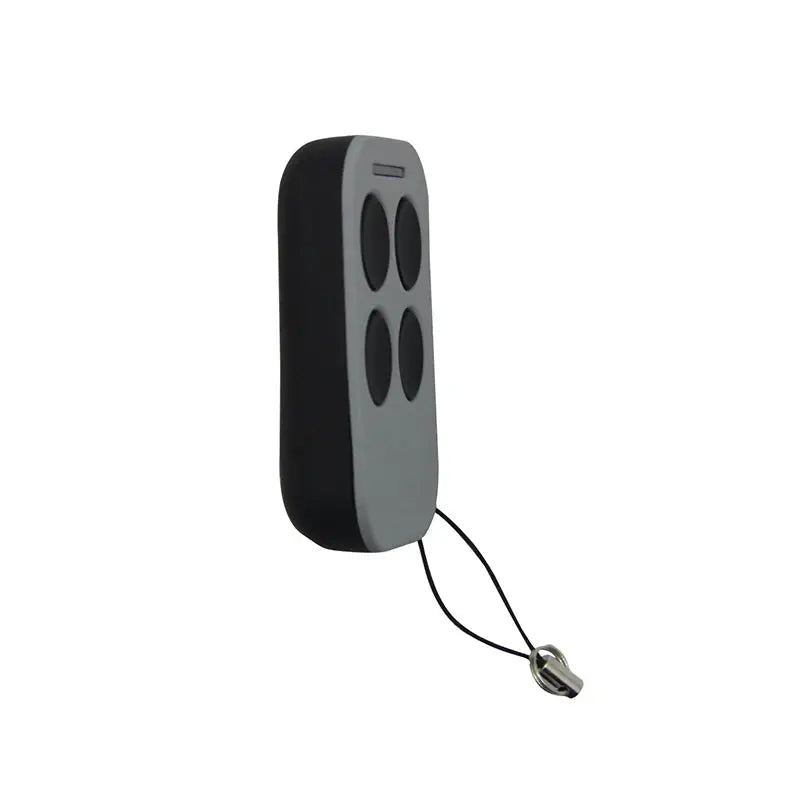

Remote Control Features
-
Rolling Code Security – High-security rolling code chip, unable to be copied or cloned.
-
433.92MHz Frequency – Ultra-long transmission range of 50–100 metres (open space).
-
12V DC Power – Operates on a 23A 12V battery (included).
-
Compact Grey Design – Lightweight and easy to carry.

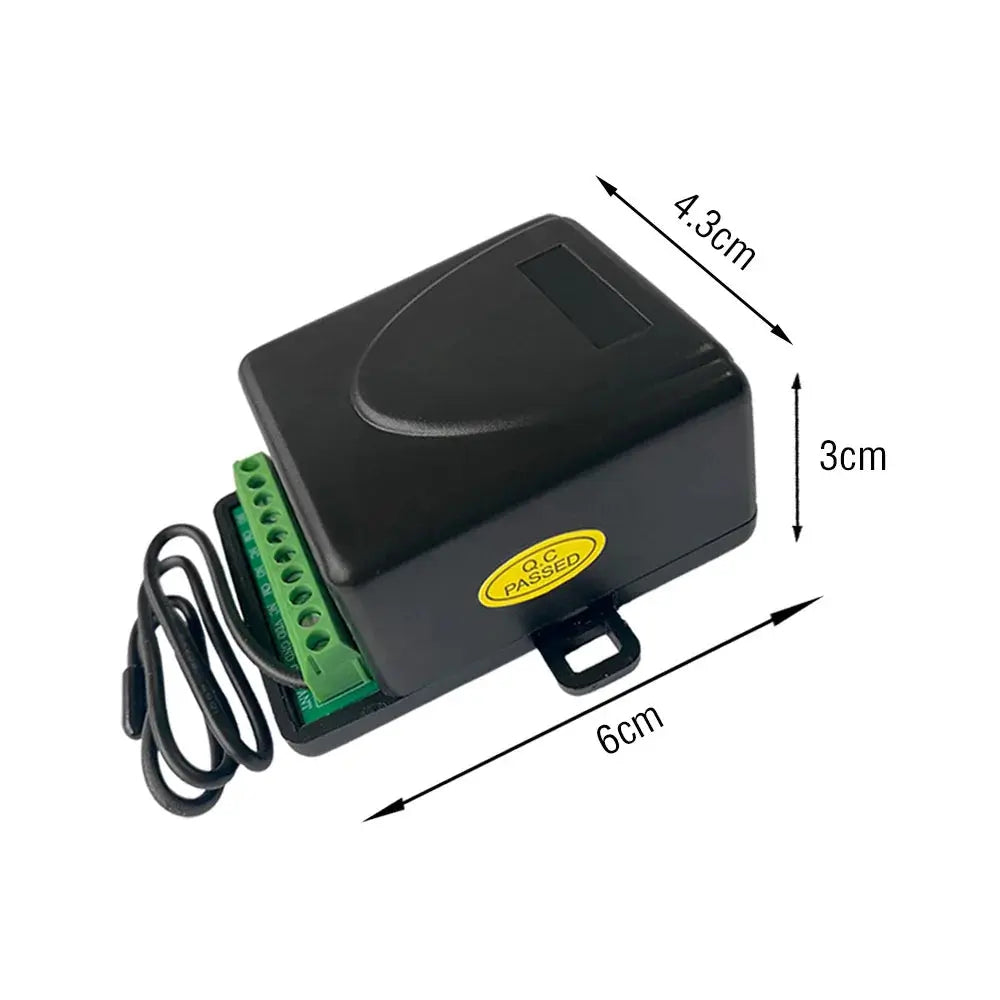

Receiver Features
-
Universal Compatibility – Learns fixed and rolling code 433.92MHz remotes separately and simultaneously.
-
Wide Brand Support – Compatible with most original 433.92MHz remotes including BFT, V2, Ditec, CAME, MOOVO, MHOUSE, PUJOL, GIBIDI, DOORHAN, ATA PTX4, and MARANTEC.
-
2-Channel Output – Control 2 gate automations or alarm systems simultaneously.
-
Large Memory – Each relay stores up to 200 remotes; total receiver capacity of 400 remotes.
-

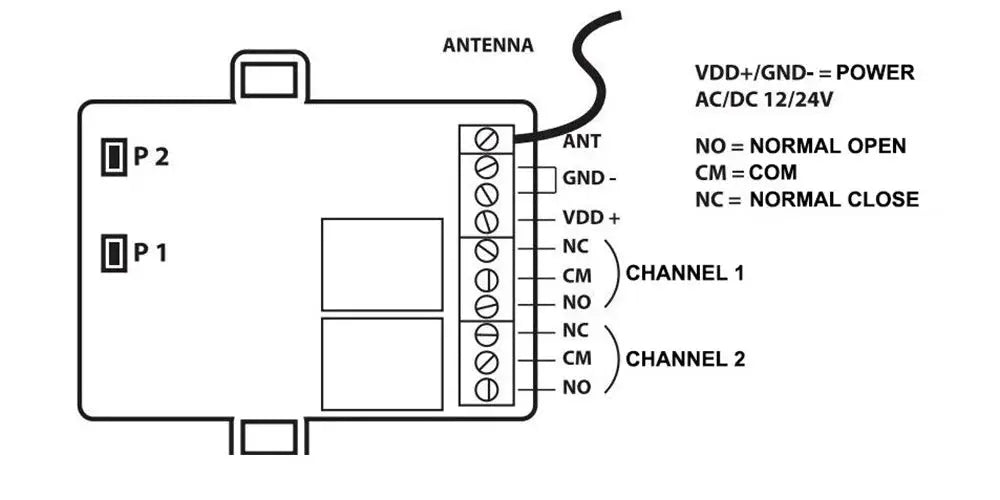

12V–24V DC/AC Power Supply – Flexible operating voltage for easy installation.
-
4 Programming Modes – Relay 1 & 2 in Momentary or Self-Locking mode via the P1 learning button.

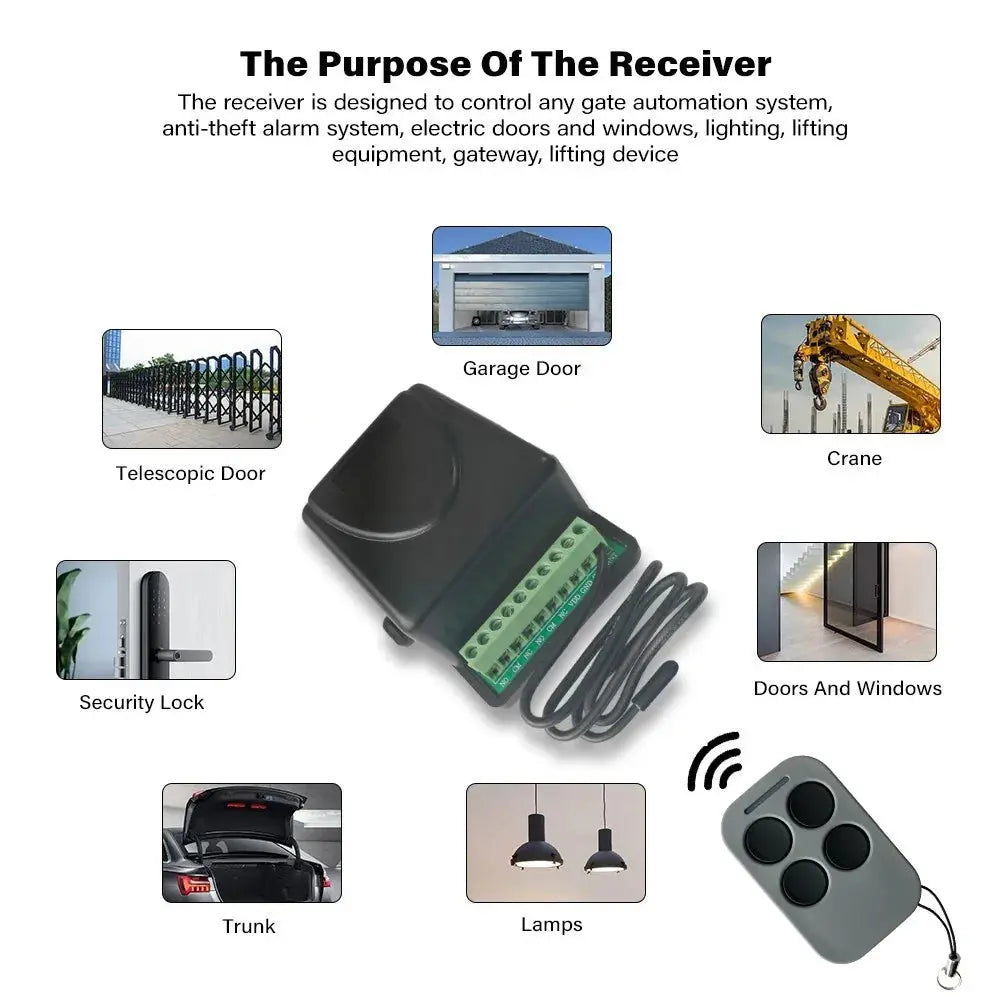

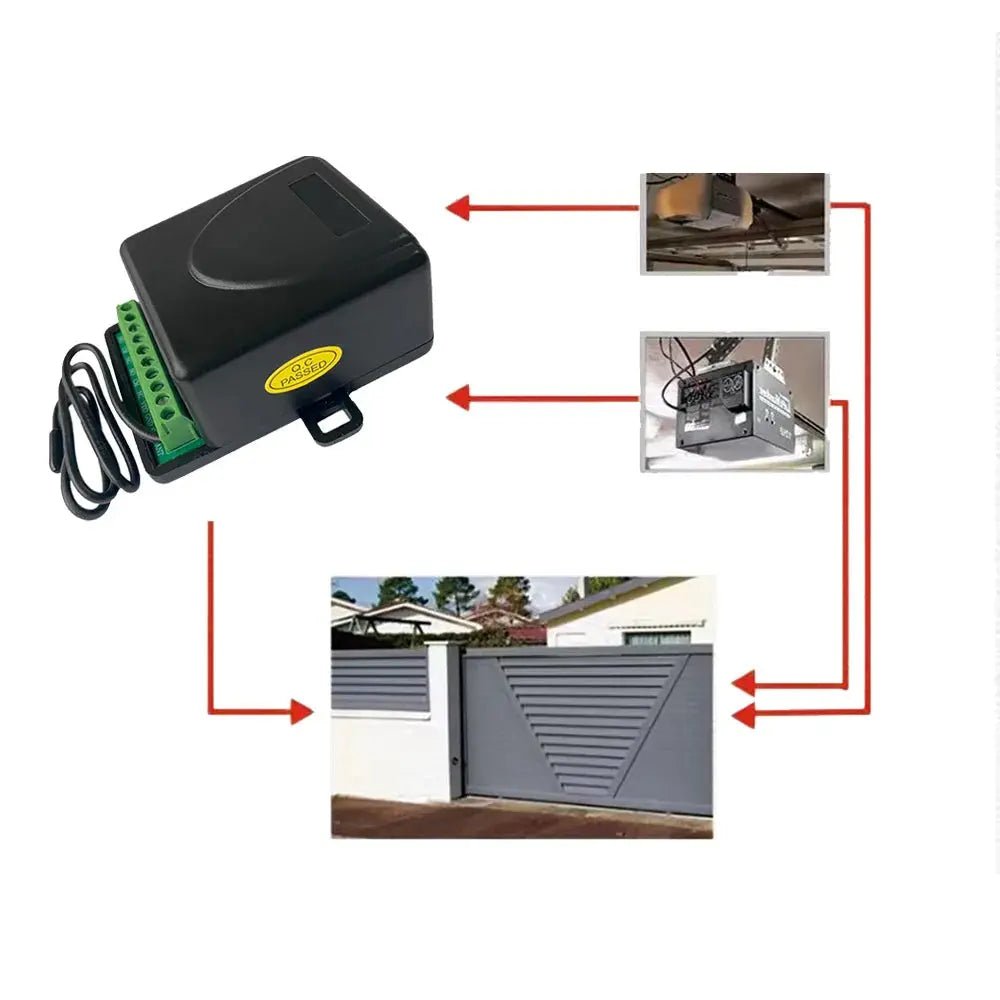

Compatible Uses
- Garage doors and roller doors
- Electronic gates, barrier gates, and sliding doors
- Automatic doors, rolling shutters
- Home automation (lights, alarm systems, access control)
How to Program the Receiver
-
Relay 1 Momentary: Press P1 once → LED lights up, then press any remote button until the learning light flashes.
-
Relay 2 Momentary: Press P1 twice → LED flashes twice, then press any remote button until the learning light flashes.
-
Relay 1 Self-Locking: Press P1 three times → LED flashes three times, then press any remote button until the learning light flashes.
-
Relay 2 Self-Locking: Press P1 four times → LED flashes four times, then press any remote button until the learning light flashes.
Specifications
-
Frequency: 433.92MHz
-
Code Types: Fixed, Learning, Rolling Code
-
Remote Battery: 23A 12V (included)
-
Receiver Voltage: 12V–24V DC/AC
-
Receiver Channels: 2
-
Receiver Memory: 400 remotes (200 per relay)
-
Range: 50–100 metres (open space)
-
Colour: Grey
-
Certification: CE
What’s in the Box

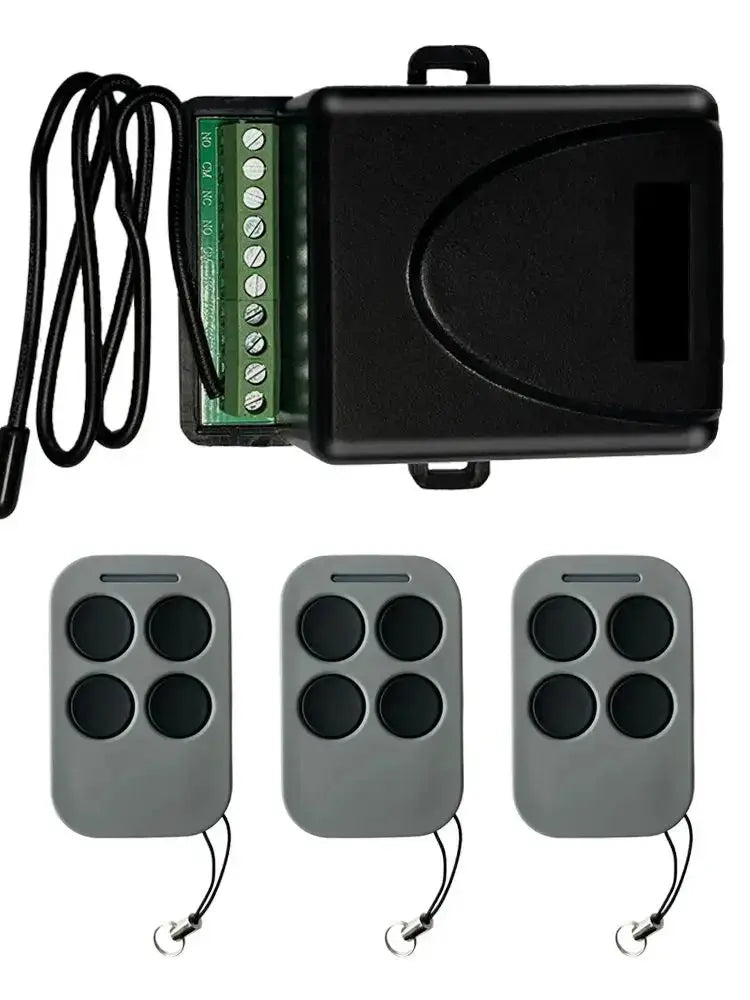

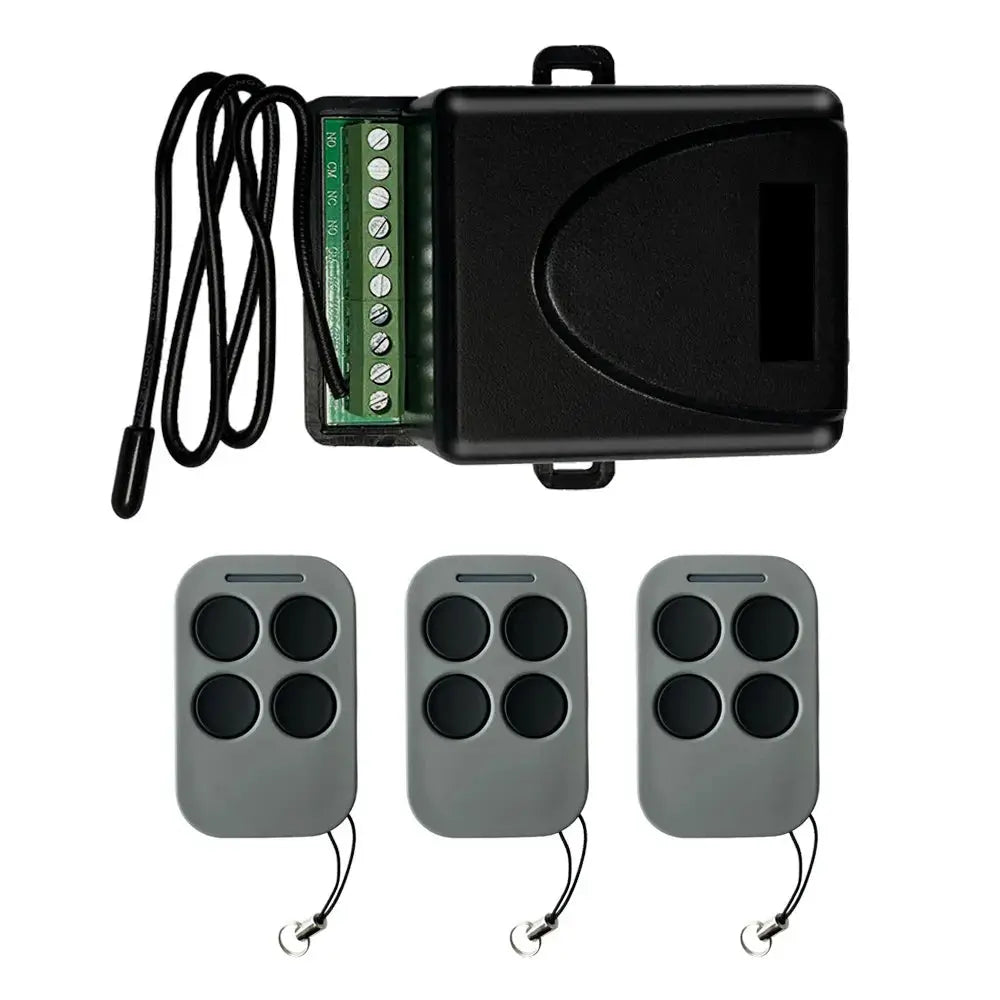

- 1 × 433.92MHz Rolling Code Remote Control
- 1 × 2-Channel Receiver
- 1 × 23A 12V Battery
Frequently Asked Questions
Can this receiver work with my existing remotes?
Yes. The receiver is compatible with most 433.92MHz fixed and rolling code remotes including BFT, V2, CAME, ATA PTX4, MARANTEC, and many more. Simply program your existing remote to the receiver using the P1 learning button.
What is the difference between Momentary and Self-Locking mode?
Momentary mode activates the relay only while the button is held. Self-Locking mode toggles the relay on/off with each button press — useful for lights or systems that need to stay on.
