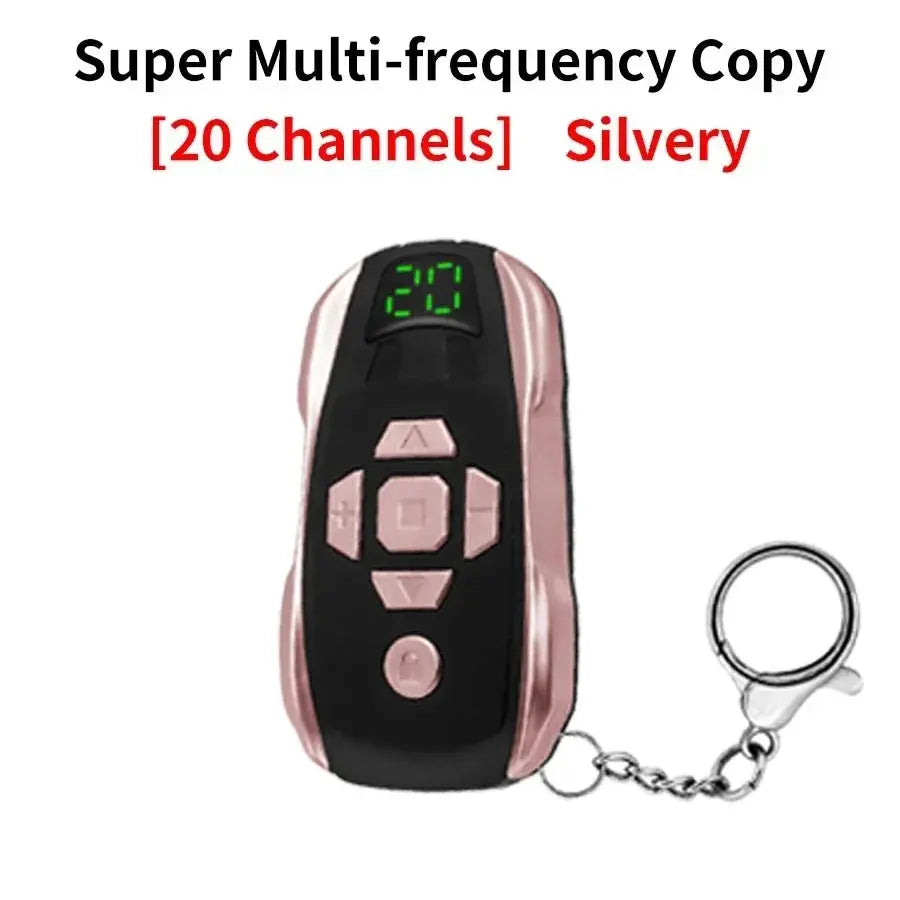

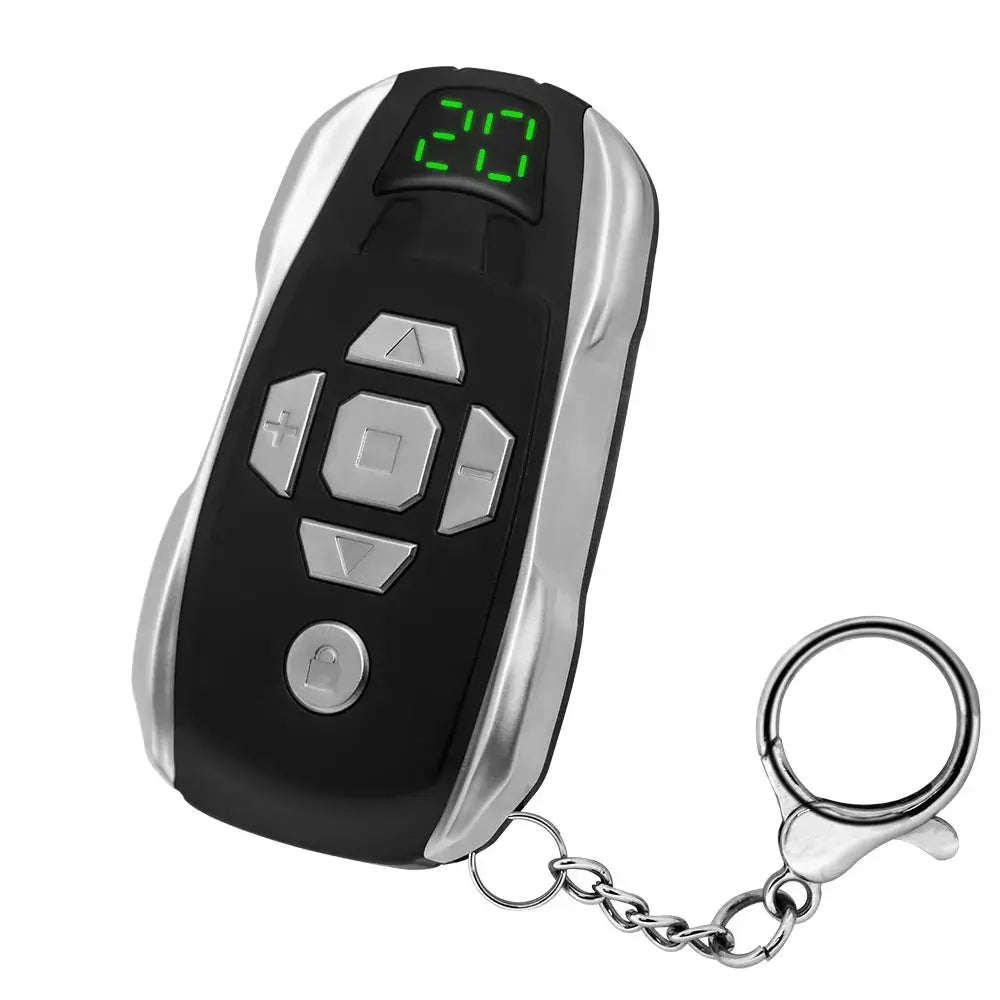

Universal Remote Cloner – 20-Channel Rechargeable Multi-Frequency 300–915MHz Garage Door & Gate Duplicator

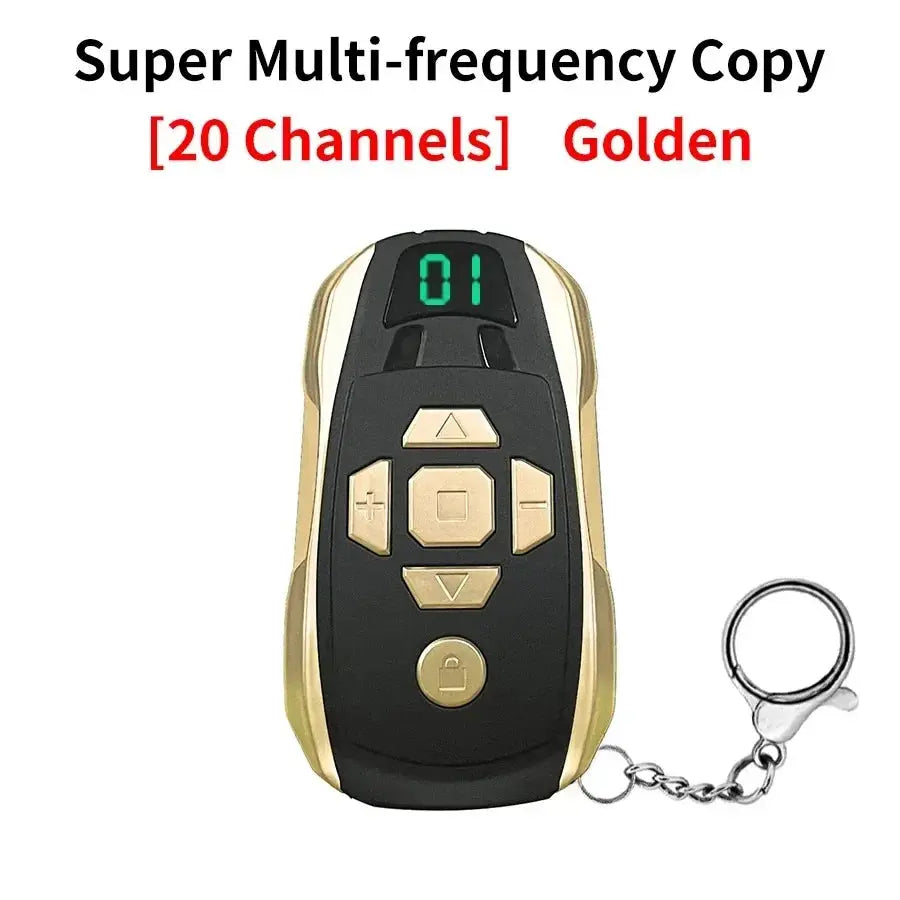

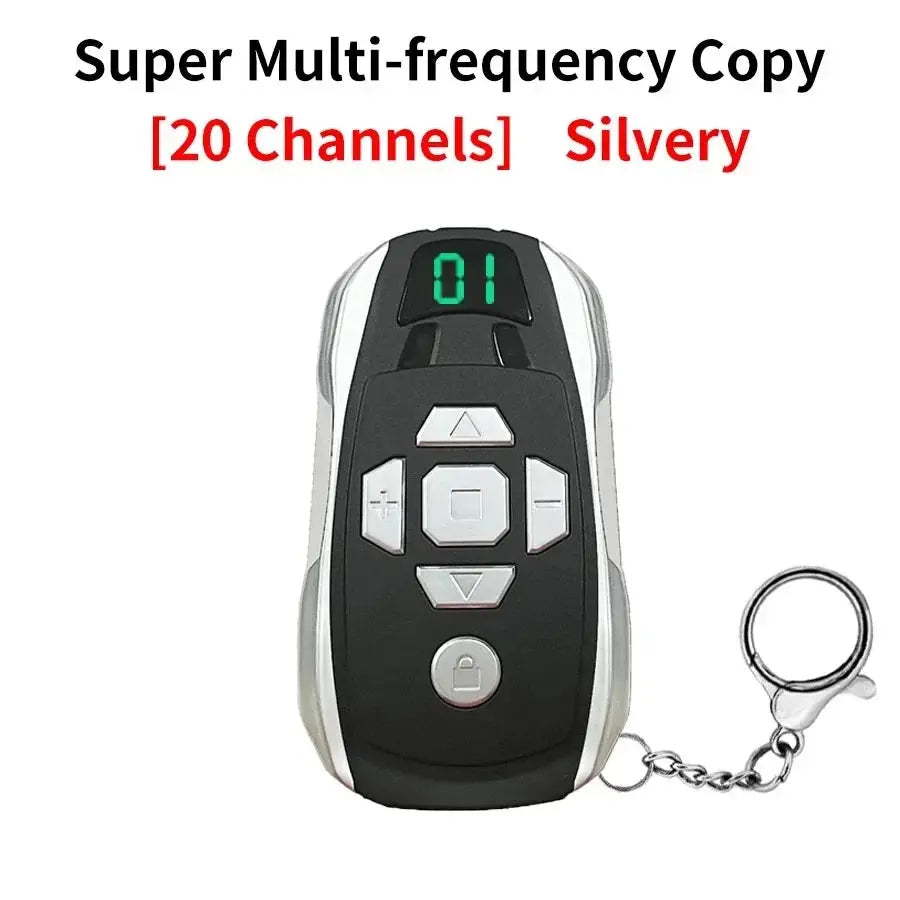

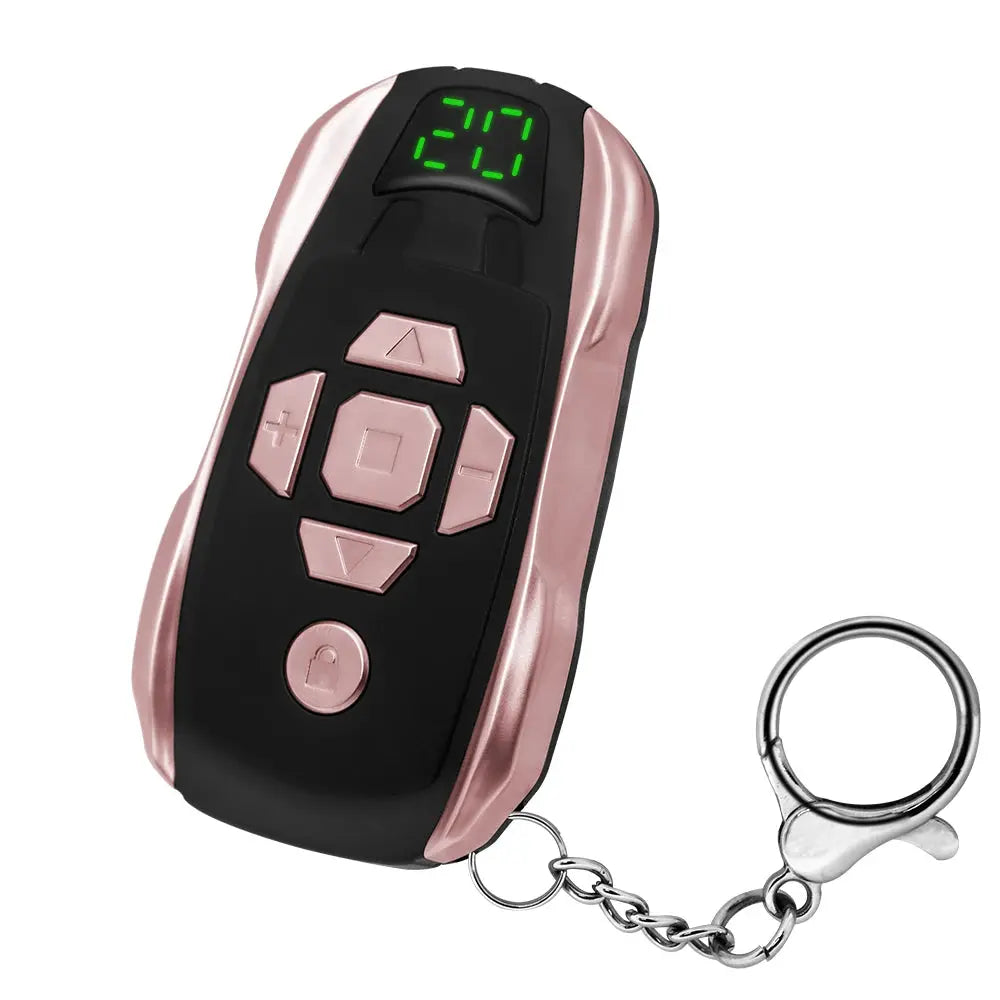

20-Channel Rechargeable Multi-Frequency Remote Duplicator

A powerful universal remote cloner with 20 rechargeable channels covering 300–915MHz. Store up to 20 different remote signals across 20 independent channels — ideal for properties with multiple gates, garage doors, or automation systems. Supports fixed code, some rolling code, and learning code remotes. Charges via USB-C.

Important: Rolling code support is partial. Please verify your remote’s frequency, code type, and original remote compatibility before purchasing.

Key Features

• 20 Independent Channels – Store up to 20 different remote signals, one per channel.
• Wide Frequency Range – Covers 300–915MHz including most common garage and gate remote frequencies.
• Fixed, Rolling & Learning Code Support – Compatible with fixed code, some rolling code, and learning code remotes.
• Rechargeable Battery – Built-in 3.7V battery, charges via USB-C (5V).
• Channel Lock – Lock individual channels to prevent accidental overwriting.
• Code Recovery – Restore accidentally cleared codes without re-copying.
• 30–50 Metre Range – Reliable signal for everyday use.

Compatible Uses

• Garage doors and roller doors
• Electric gates and barriers
• Alarm systems and access control
• Home automation devices

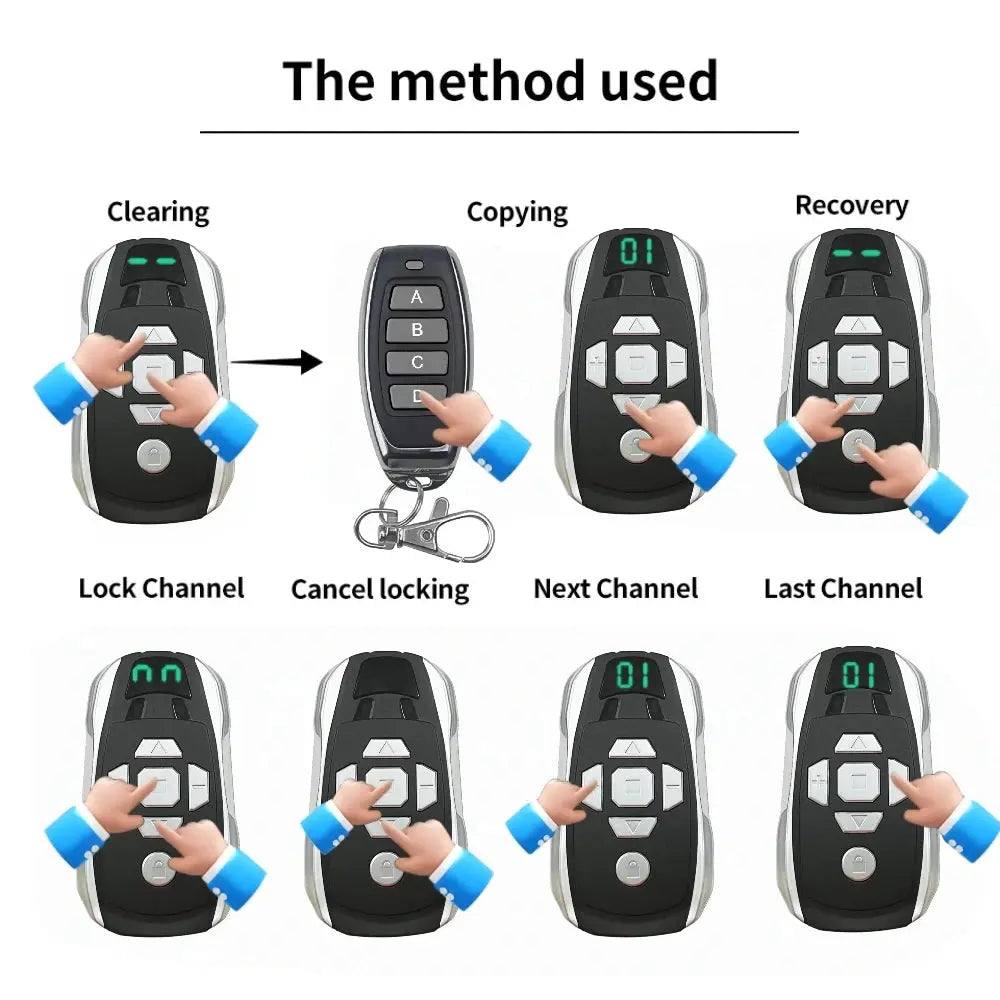

How to Use

Select a Channel

Use the + and − buttons to navigate between the 20 channels.

Step 1 – Clear a Channel

Select the channel, then press buttons 1 and 2 simultaneously for 2 seconds. The LED will flash rapidly and display “—” — the channel is cleared.

Step 2 – Copy a Remote

Select the channel. Hold the original remote and the duplicator close together. Press the button on both remotes simultaneously and hold for 3 seconds. The LED will light up showing the channel number — copying is successful. Repeat for other buttons by selecting a new channel.

Recover Cleared Codes

Press buttons 3 and 4 simultaneously for 2 seconds. The LED will flash rapidly and display “—” — the previously cleared code is restored.

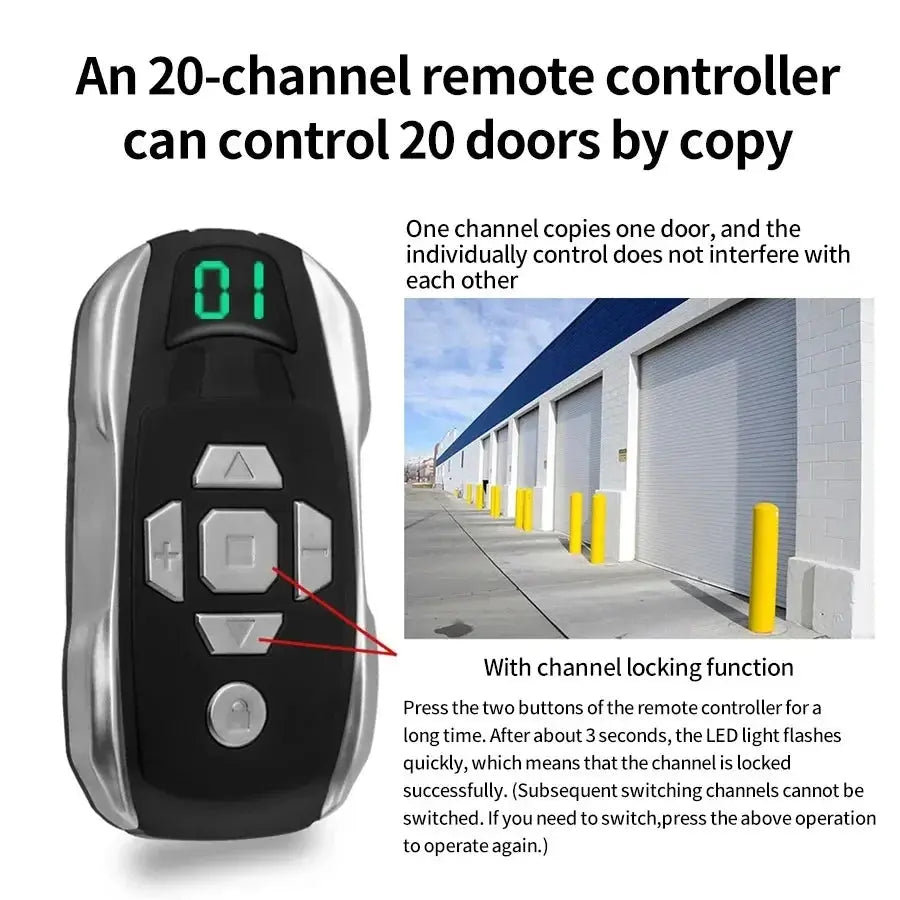

Lock / Unlock a Channel

Select the channel, then press buttons 2 and 3 simultaneously for 2 seconds. The LED will blink rapidly and display a lock symbol — the channel is locked. Repeat to unlock.

Specifications

• Channels: 20
• Frequency: 300–915MHz
• Code Types: Fixed code, some rolling code, learning code
• Transmit Power: 13dBm
• Operating Voltage: 3.7V
• Operating Current: 25mA
• Charging: USB-C (5V)

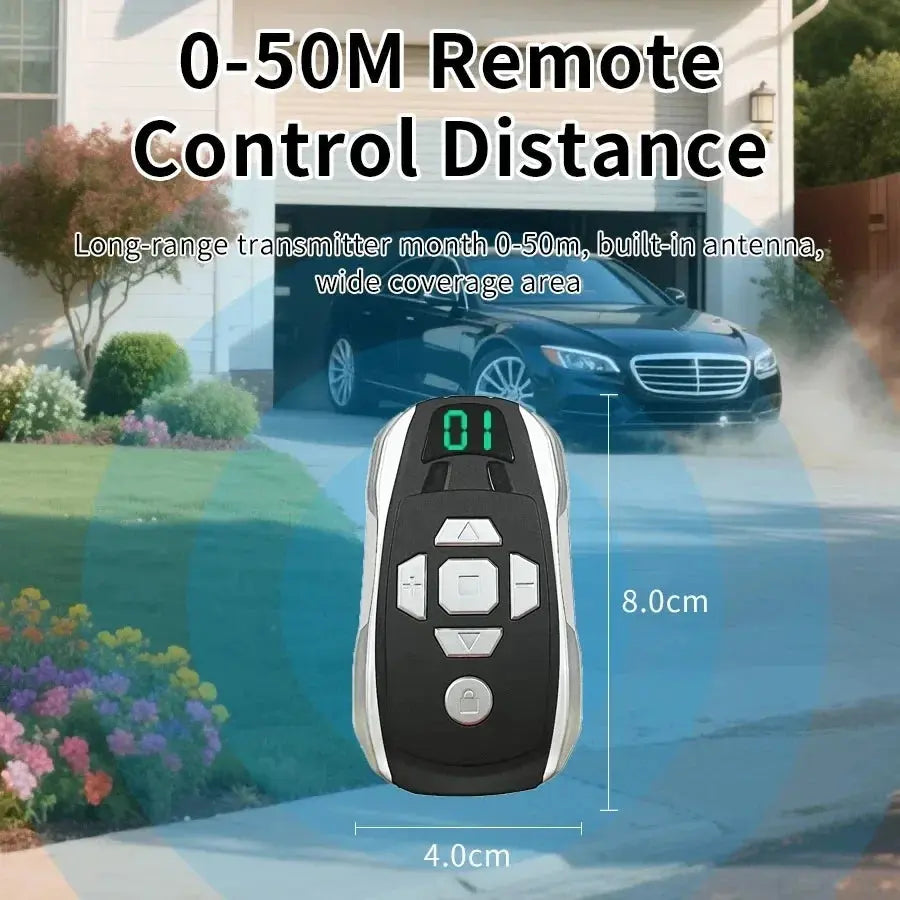

• Range: 30–50 metres
• Dimensions: 78 × 43.2 × 16.5mm
• Hazardous Chemicals: None

What’s in the Box

• 1 × 20-Channel Rechargeable Remote Duplicator

Frequently Asked Questions

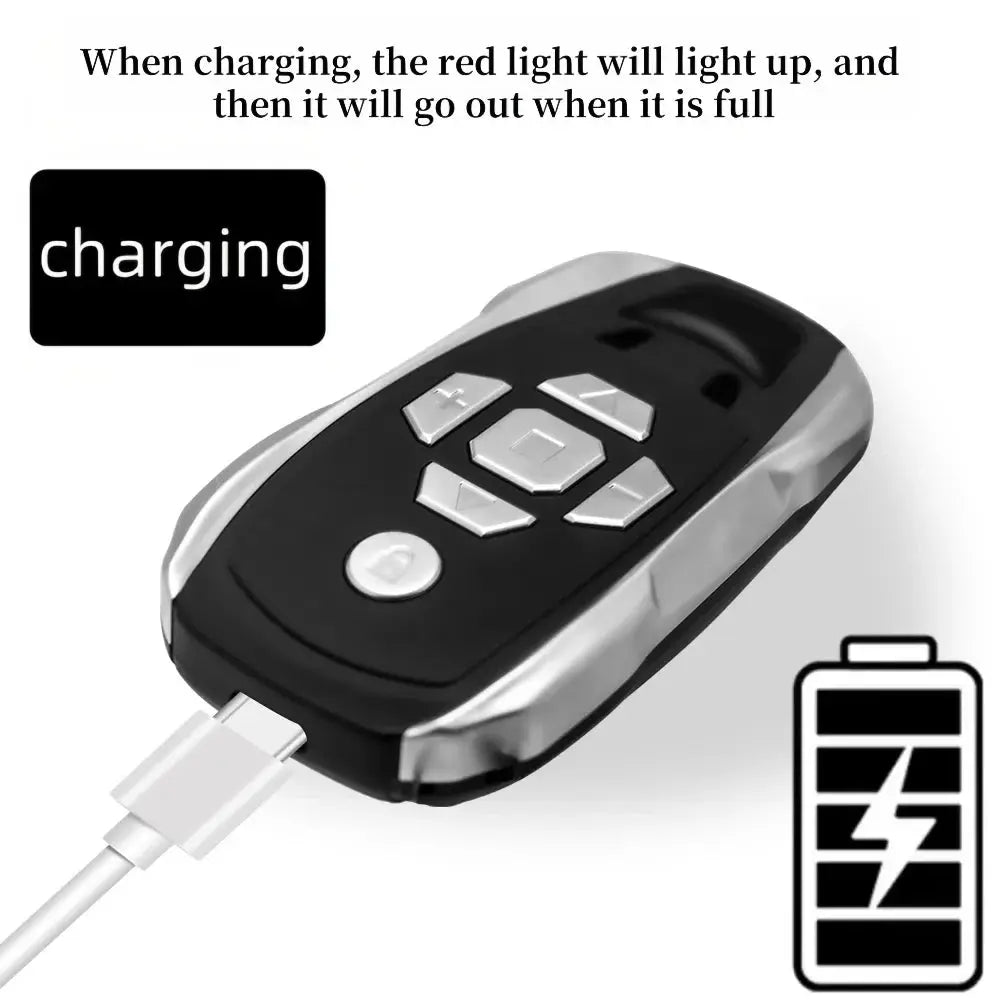

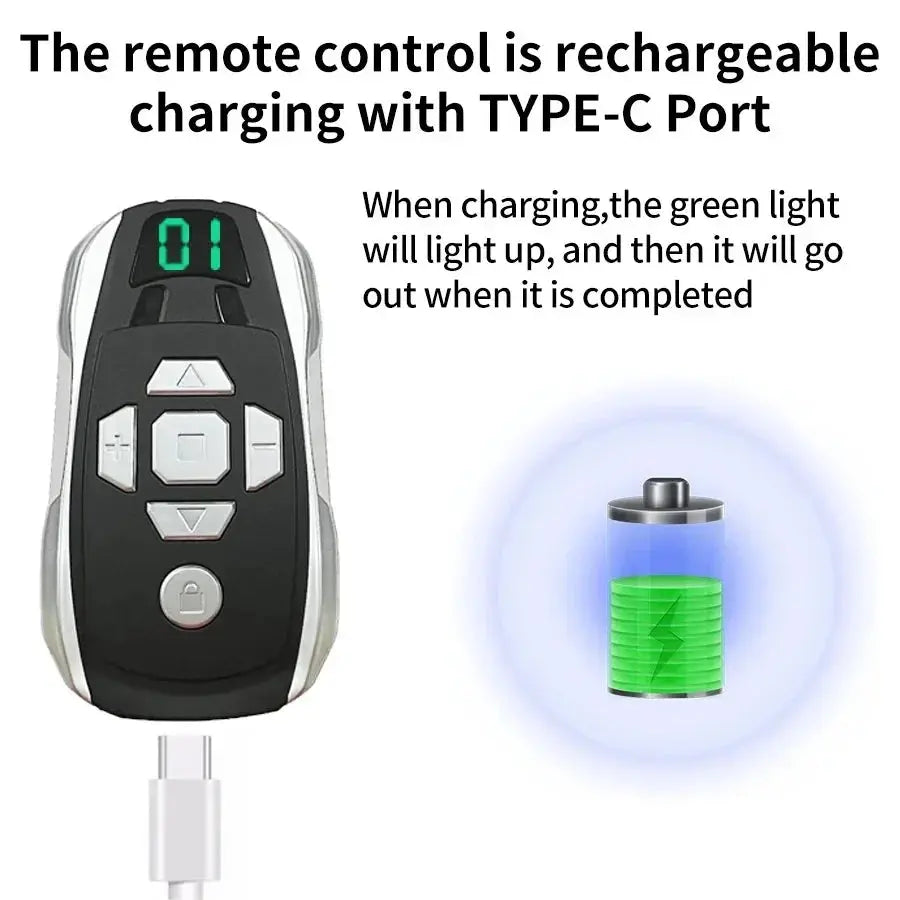

How do I charge the duplicator?

Connect via the USB-C port (5V). The built-in 3.7V battery is rechargeable, so no battery replacements are needed.

Can I lock a channel to prevent accidental changes?

Yes. Select the channel and press buttons 2 and 3 simultaneously for 2 seconds to lock it. Repeat to unlock.

How many remotes can I copy onto one device?

You can store up to 20 different remote signals, with one signal assigned to each channel.
